25NMHO (1996)
Cylinder

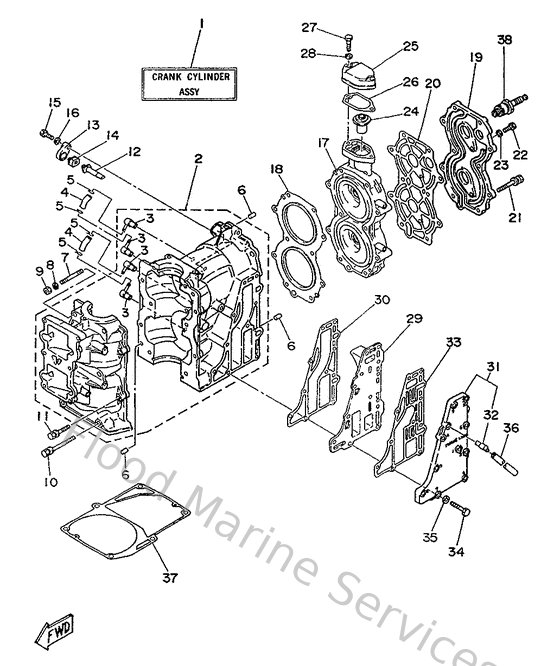

Diagram: Cylinder
Parts List
Reference
Description
Price
1
6L2W0090114D
Crank Cylinder assembly
Loading…
↗
2
6L2151001094
Crankcase assembly
Loading…
↗
3
6E5113720000
Nipple, hose
Loading…
↗
12
6J8113250000
Anode
Loading…
↗
13
6H3113270094
Cover, anode
Loading…
↗
14
6H3113280000
Grommet, anode
Loading…
↗
17
6L2111110194
Head, cylinder 1
Loading…
↗
18
6L211181A100
Gasket, cylinder head 1
Loading…
↗
19
6L211191009M
Cover, cylinder head 1
Loading…
↗
20
6L211193A100
Gasket, head cover 1
Loading…
↗
24
6E5124112000
Thermostat
Loading…
↗
25
6H412413009M
Cover, thermostat
Loading…
↗
26
61A12414A000
Gasket, cover
Loading…
↗
29
6L241111009M
Inner cover, exhaust
Loading…
↗
30
6L241112A300
Gasket, exhaust inner cover
Loading…
↗
31
6L241113009M
Outer cover, exhaust
Loading…
↗
32
676113720000
Nipple, hose
Loading…
↗
33
6L241114A100
Gasket, exhaust outer cover
Loading…
↗
37
6L245113A100
Gasket, upper casing
Loading…
↗
