115CETOL (1990)
Cylinder & Crankcase

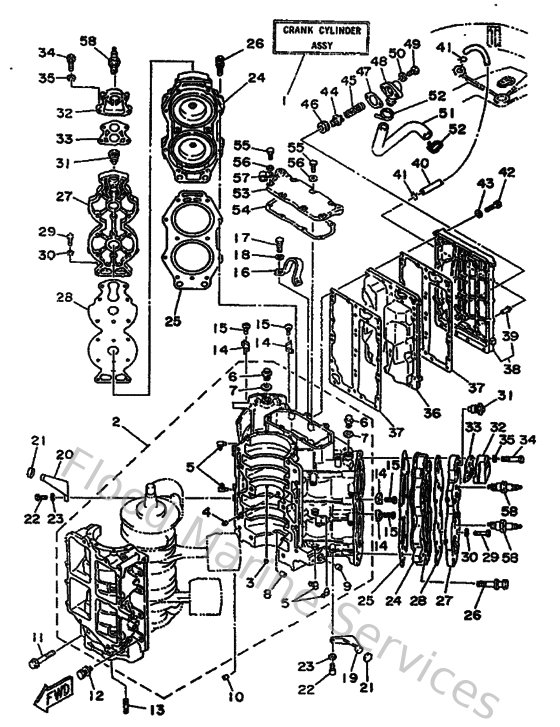

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
6N6W0090141S
Crank Cylinder assembly
Loading…
↗
2
6N7151000200
Crankcase assembly
Loading…
↗
3
624113790000
Valve, check
Loading…
↗
4
663115180100
Lock, bearing
Loading…
↗
5
6E5113720100
Nipple, hose
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
8
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
9
9038414M0900
Bush, bimetal formed(6r3)
Loading…
↗
10
936081206300
Pin, dowel (626)
Loading…
↗
11
9010510M2000
Bolt (6e5)
Loading…
↗
13
9011608M1400
Bolt, stud (6e5)
Loading…
↗
14
6E5113250000
Anode
Loading…
↗
15
986800401600
Screw, flat head(ga5)
Loading…
↗
16
6E5111190000
Hanger, Engine
Loading…
↗
17
970130802000
Bolt(6td)
Loading…
↗
18
929900810000
Ybs67-8 washer, spring
Loading…
↗
21
663445330000
Damper, upper mount
Loading…
↗
22
973130602000
Bolt(7u8)
Loading…
↗
23
929900660000
Washer, plain (646)
Loading…
↗
26
9011908M0700
Bolt, with washer(63v)
Loading…
↗
29
973130603000
Bolt
Loading…
↗
33
688124140000
Gasket, cover
Loading…
↗
34
973130604000
Bolt (682)
Loading…
↗
41
904670800400
Clip, pipe 6162435600
Loading…
↗
42
970130603500
Bolt(3rv)
Loading…
↗
44
6G5124160000
Valve, pressure control
Loading…
↗
45
9050116M1100
Spring, compression (688)
Loading…
↗
47
6G511382A100
Gasket 2
Loading…
↗
51
6E5125760000
Hose 1
Loading…
↗
52
9046513M1800
Clamp
Loading…
↗
54
6E511381A200
Gasket 1
Loading…
↗
57
904650802800
Clamp (1e6)
Loading…
↗
58
947020024700
Plug, spark (br8hs-10)
Loading…
↗
