130BETOL (2001)
Cylinder & Crankcase

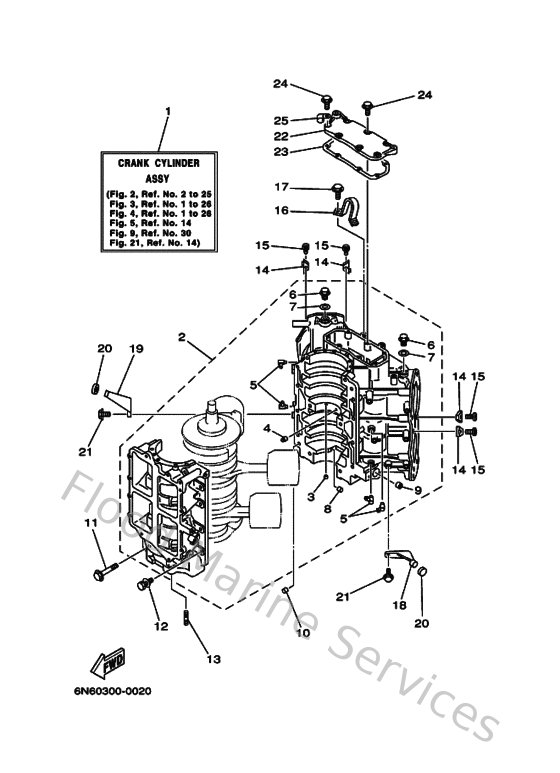

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
6N7W0090161S
Crank cylinder assembly
Loading…
↗
2
6N715100011S
Crankcase assembly
Loading…
↗
3
624113790000
Valve, check
Loading…
↗
4
663115180100
Lock, bearing
Loading…
↗
5
6E5113720000
Nipple, hose
Loading…
↗
6
9034014M0600
Plug, straight screw(62y)
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
8
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
9
9038414M0900
Bush, bimetal formed(6r3)
Loading…
↗
10
936081206300
Pin, dowel (626)
Loading…
↗
11
9010510M2000
Bolt (6e5)
Loading…
↗
12
9011908M9400
Bolt, with washer
Loading…
↗
13
9011608M4500
Bolt, stud (6e5)
Loading…
↗
14
6E5113250000
Anode
Loading…
↗
15
987800401500
Screw, flat head(ga5)
Loading…
↗
16
6E5111190100
Hanger, engine
Loading…
↗
17
9011908MA300
Bolt, with washer
Loading…
↗
18
6E542761001S
Stopper
Loading…
↗
19
6E542762001S
Stopper
Loading…
↗
20
68F445330000
Damper, upper mount rubber
Loading…
↗
21
9011906MA200
Bolt, with washer
Loading…
↗
22
6K711371011S
Cover
Loading…
↗
23
6E511381A200
Gasket 1
Loading…
↗
25
9046506M8600
Clamp
Loading…
↗
