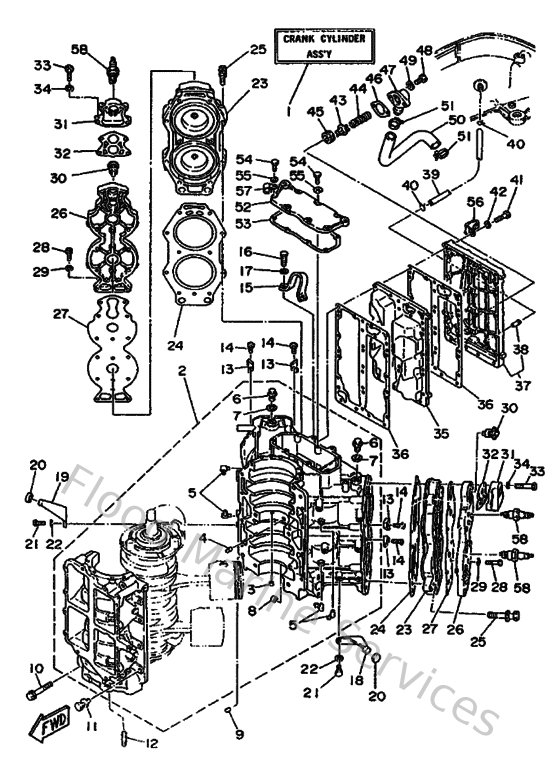

Diagram: Cylinder & Crankcase

Diagram

Parts List

Reference
Description
Price


2
6L1151000094
Crankcase assembly
Loading…

↗
3
624113790000
Valve, check
Loading…

↗
4
663115180100
Lock, bearing
Loading…

↗
5
6E5113720000
Nipple, hose
Loading…

↗
7
904301411500
Gasket (663)
Loading…

↗
9
936081206300
Pin, dowel (626)
Loading…

↗
10
9010510M2000
Bolt (6e5)
Loading…

↗
12
9011608M1400
Bolt, stud (6e5)
Loading…

↗
13
6E5113250000
Anode
Loading…

↗
15
6E5111190100
Hanger, engine
Loading…

↗
16
973130802000
Bolt(6td)
Loading…

↗
17
929900810000
Ybs67-8 washer, spring
Loading…

↗
18
6E542761001S
Stopper
Loading…

↗
19
6E5427620094
Stopper
Loading…

↗
20
663445330000
Damper, upper mount
Loading…

↗
21
970800602000
Bolt(7u8)
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
6L111111001S
Head, cylinder 1
Loading…

↗
24
6E5111810200
Gasket, cylinder head 1
Loading…

↗
25
9011908M2100
Bolt, with washer(63v)
Loading…

↗
27
6E511193A000
Gasket, head cover 1
Loading…

↗
28
973130603000
Bolt
Loading…

↗
30
6E5124113000
Thermostat
Loading…

↗
31
6G512413009M
Cover, thermostat
Loading…

↗
32
688124140000
Gasket, cover
Loading…

↗
33
970950604000
Bolt (682)
Loading…

↗
35
6L141111001S
Inner cover, exhaust
Loading…

↗
36
6E5411120000
Gasket, exhaust inner cover
Loading…

↗
37
6E541113019M
Outer cover, exhaust
Loading…

↗
38
6EEF43770000
Pipe, joint 2
Loading…

↗
39
6E5243120000
Pipe 2
Loading…

↗
40
904670800400
Clip, pipe 6162435600
Loading…

↗
41
973130603500
Bolt(3rv)
Loading…

↗
43
6G5124160000
Valve, pressure control
Loading…

↗
44
9050116M1100
Spring, compression (688)
Loading…

↗
45
9048020M0500
Grommet (688)
Loading…

↗
46
6G5113820000
Gasket 2
Loading…

↗
47
6G511372009M
Cover, bypass 2
Loading…

↗
51
9046513M1800
Clamp
Loading…

↗
52
6E511371001S
Cover
Loading…

↗
54
973130602000
Bolt(7u8)
Loading…

↗
56
9046508M0800
Clamp (6e5)
Loading…

↗
57
904650802800
Clamp (1e6)
Loading…

↗
58
947020024700
Plug, spark (br8hs-10)
Loading…

↗
