140BETOL (1989)
Cylinder & Crankcase

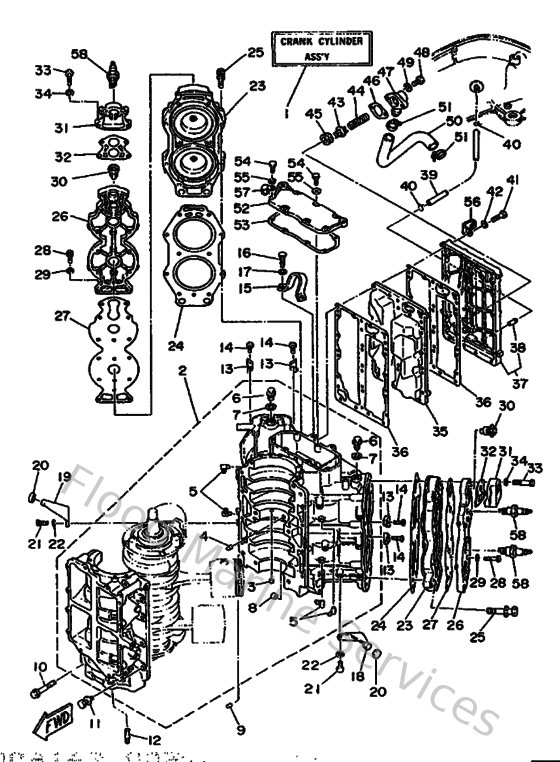

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
2
6L1151000094
Crankcase assembly
Loading…
↗
3
624113790000
Valve, check
Loading…
↗
4
663115180100
Lock, bearing
Loading…
↗
5
6E5113720000
Nipple, hose
Loading…
↗
6
9034014M0600
Plug, straight screw(62y)
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
9
936081206300
Pin, dowel (626)
Loading…
↗
10
9010510M2000
Bolt (6e5)
Loading…
↗
12
9011608M1400
Bolt, stud (6e5)
Loading…
↗
13
6E5113250000
Anode
Loading…
↗
14
986800401600
Screw, flat head(ga5)
Loading…
↗
15
6E5111190000
Hanger, Engine
Loading…
↗
16
970130802000
Bolt(6td)
Loading…
↗
17
929900810000
Ybs67-8 washer, spring
Loading…
↗
18
6E5427610094
Stopper
Loading…
↗
19
6E542762001S
Stopper
Loading…
↗
20
663445330000
Damper, upper mount
Loading…
↗
21
973130602000
Bolt(7u8)
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
6L111111001S
Head, cylinder 1
Loading…
↗
24
6E5111810200
Gasket, cylinder head 1
Loading…
↗
25
9011908M0700
Bolt, with washer(63v)
Loading…
↗
26
6E511191019M
Cover, cylinder head 1
Loading…
↗
27
6E5111930100
Gasket, head cover 1
Loading…
↗
28
970800603000
Bolt(jf7)
Loading…
↗
30
6E5124111000
Thermostat
Loading…
↗
31
6G512413009M
Cover, thermostat
Loading…
↗
32
68812414A100
Gasket, cover
Loading…
↗
33
973130604000
Bolt (682)
Loading…
↗
35
6L141111001S
Inner cover, exhaust
Loading…
↗
36
6E5411120000
Gasket, exhaust inner cover
Loading…
↗
37
6E541113019M
Outer cover, exhaust
Loading…
↗
38
6EEF43770000
Pipe, joint 2
Loading…
↗
39
6E5243120000
Pipe 2
Loading…
↗
40
904670800400
Clip, pipe 6162435600
Loading…
↗
41
970130603500
Bolt(3rv)
Loading…
↗
43
6G5124160000
Valve, pressure control
Loading…
↗
44
9050116M1100
Spring, compression (688)
Loading…
↗
45
9048020M0500
Grommet (688)
Loading…
↗
46
6G511382A100
Gasket 2
Loading…
↗
47
6G511372009M
Cover, bypass 2
Loading…
↗
50
6E5125760000
Hose 1
Loading…
↗
51
9046513M1800
Clamp
Loading…
↗
52
6E511371001S
Cover
Loading…
↗
53
6E5113810000
Gasket 1
Loading…
↗
56
9046508M0800
Clamp (6e5)
Loading…
↗
57
904650802800
Clamp (1e6)
Loading…
↗
58
947020024700
Plug, spark (br8hs-10)
Loading…
↗
