225AETOL (1989)
Cylinder & Crankcase

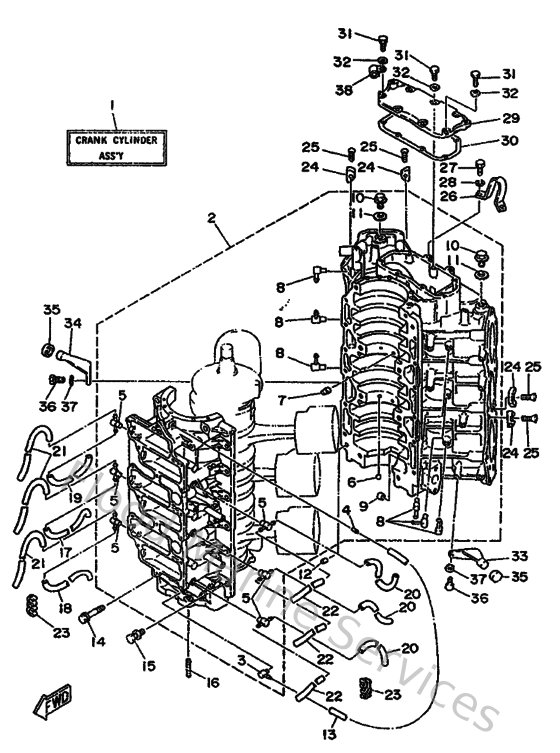

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
2
6K7151000094
Crankcase Assembly
Loading…
↗
3
6E5113720000
Nipple, hose
Loading…
↗
4
624144850000
Pipe, joint
Loading…
↗
5
6F6113720000
Nipple, hose
Loading…
↗
6
624113790000
Valve, check
Loading…
↗
7
663115180100
Lock, bearing
Loading…
↗
8
646113700000
Check valve assembly
Loading…
↗
10
9034014M0000
Plug, straight screw(62y)
Loading…
↗
11
904301411500
Gasket (663)
Loading…
↗
12
936081206300
Pin, dowel (626)
Loading…
↗
13
9044507M1000
Hose (L770)
Loading…
↗
14
9010510M2000
Bolt (6e5)
Loading…
↗
16
9011608M1400
Bolt, stud (6e5)
Loading…
↗
17
9044507M1100
Hose (l770)
Loading…
↗
18
9044507M9000
Hose (l390)
Loading…
↗
19
904450724000
Hose (l390)
Loading…
↗
20
9044507M4400
Hose (l390)
Loading…
↗
21
9044507MA300
Hose (l200)
Loading…
↗
22
9044507M0300
Hose (l200)
Loading…
↗
23
9046407M0500
Clamp (6g5)
Loading…
↗
24
6E5113250000
Anode
Loading…
↗
25
987800401600
Screw, flat head(ga5)
Loading…
↗
26
6E5111190000
Hanger, Engine
Loading…
↗
27
973130802000
Bolt(6td)
Loading…
↗
29
6K711371011S
Cover
Loading…
↗
31
973130602000
Bolt(7u8)
Loading…
↗
33
6E5427610094
Stopper
Loading…
↗
34
6E542762001S
Stopper
Loading…
↗
35
663445330000
Damper, upper mount
Loading…
↗
37
929900660000
Washer, plain (646)
Loading…
↗
38
9046508M0700
Clamp (1e6)
Loading…
↗
1
6K7111110194
Head, Cylinder 1
Loading…
↗
2
6G5111810100
Gasket, cylinder head 1
Loading…
↗
3
9011908M0700
Bolt, with washer(63v)
Loading…
↗
4
6G511191009M
Cover, cylinder head 1
Loading…
↗
5
6G5111930100
Gasket, head cover 1
Loading…
↗
6
970800603000
Bolt(jf7)
Loading…
↗
8
6E5124111000
Thermostat
Loading…
↗
9
6G512413009M
Cover, thermostat
Loading…
↗
11
970130604500
Bolt, hexagon
Loading…
↗
13
6G541111009M
Inner cover, exhaust
Loading…
↗
15
6R341113001S
Outer cover, exhaust
Loading…
↗
16
650243780000
Pipe, joint 2
Loading…
↗
17
970130603500
Bolt(3rv)
Loading…
↗
19
6E5243120000
Pipe 2
Loading…
↗
20
904670800400
Clip, pipe 6162435600
Loading…
↗
21
6G5124160000
Valve, pressure control
Loading…
↗
22
9050116M1100
Spring, compression (688)
Loading…
↗
23
9048020M0500
Grommet (688)
Loading…
↗
25
6G511372009M
Cover, bypass 2
Loading…
↗
28
6G5125760000
Hose 1
Loading…
↗
29
9046513M1800
Clamp
Loading…
↗
30
947020030900
Plug, spark (br9hs-10)
Loading…
↗
