4ACMH (1990)
Cylinder & Crankcase

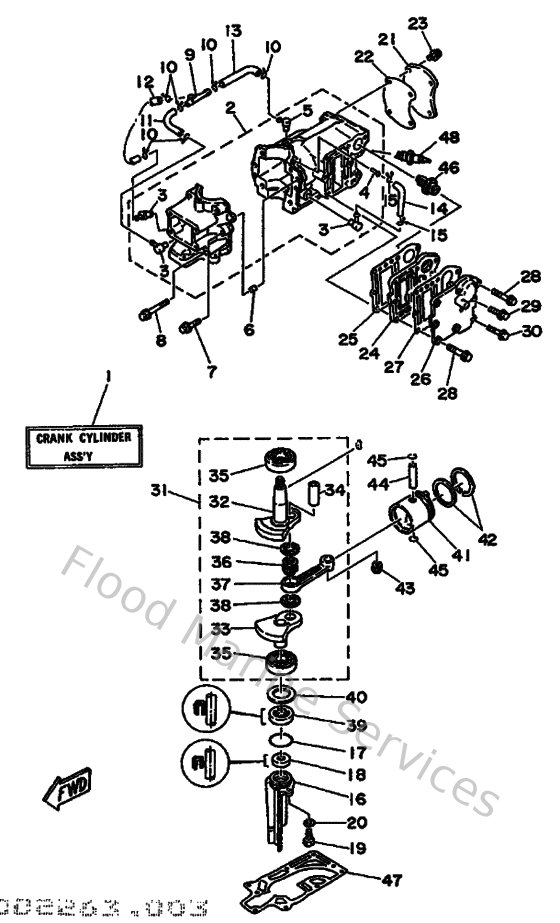

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
6E0W009003EJ
Crank Cylinder assembly
Loading…
↗
2
6E0151000194
Crankcase assembly
Loading…
↗
3
650113700000
Check valve assembly
Loading…
↗
4
624144850000
Pipe, joint
Loading…
↗
5
6E5113720100
Nipple, hose
Loading…
↗
6
936040806200
Pin,dowel (626)
Loading…
↗
7
9010506M1600
Bolt (6e0)
Loading…
↗
8
9010506M1700
Bolt (6e0)
Loading…
↗
9
6E0243780000
Pipe, joint
Loading…
↗
10
904670601600
Clip (655)
Loading…
↗
11
9044507M0000
Hose (l200)
Loading…
↗
12
9044507MA300
Hose (l200)
Loading…
↗
13
9044507M5100
Hose (l200)
Loading…
↗
14
9044507M2800
Hose (l200)
Loading…
↗
16
6E015396029M
Housing, oil seal
Loading…
↗
17
9321031MJ500
O-ring
Loading…
↗
18
9310110M2500
Oil seal(6e0)
Loading…
↗
19
973950601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
6E011191019M
Cover, cylinder head 1
Loading…
↗
22
6E0111930100
Gasket,head cover
Loading…
↗
23
9010506M1400
Bolt (6e0)
Loading…
↗
24
6E041111019M
Inner cover, exhaust
Loading…
↗
25
6E0411120100
Gasket,inner cover exhaust
Loading…
↗
26
6E041113019M
Outer cover, exhaust
Loading…
↗
27
6E0411140100
Gasket,outer cover exhaust
Loading…
↗
28
9010506M2400
Bolt (6g1)
Loading…
↗
31
6E0114000000
Crank assembly
Loading…
↗
32
6E0114120000
Crank 1
Loading…
↗
33
6E0114220000
Crank 2
Loading…
↗
34
6G1116810000
Pin, crank
Loading…
↗
35
93306204U000
Bearing(6e0)
Loading…
↗
36
93310418V100
Bearing (6e0)
Loading…
↗
37
6E0116510100
Rod, connecting
Loading…
↗
38
902091811200
Washer 132116850000
Loading…
↗
39
9310120M2900
Oil seal(6j1)
Loading…
↗
40
9020132M4800
Shim (t:0.90mm)
Loading…
↗
41
6E0116310098
Piston
Loading…
↗
42
6G1116100000
Piston ring set (std)
Loading…
↗
43
93310112V000
Bearing (6e0)
Loading…
↗
44
527116330000
Pin, piston
Loading…
↗
45
934501302200
Circlip 132116340000
Loading…
↗
46
6E5124110100
Thermostat
Loading…
↗
47
6E0451130000
Gasket,upper casing
Loading…
↗
48
947020027200
Plug, spark (br7hs)
Loading…
↗
