Yamaha Outboard Parts - Cylinder & Crankcase - 5CMH (1993) | Flood Marine

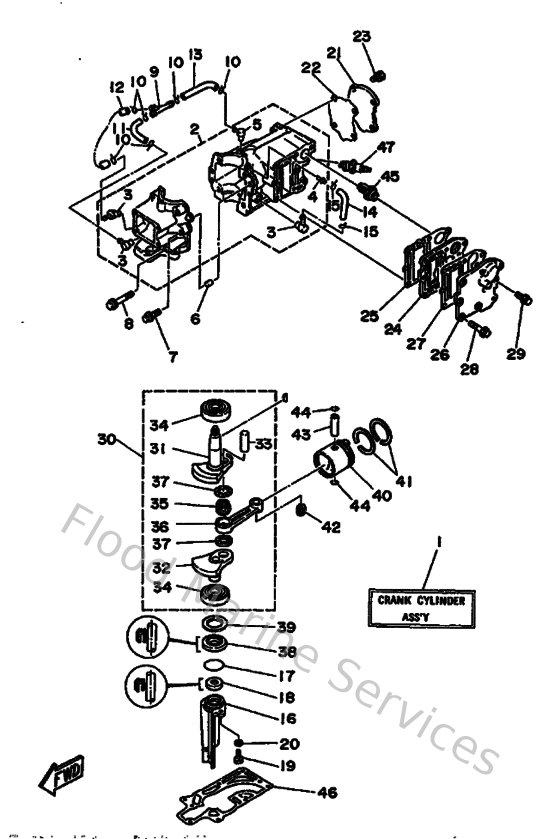

Diagram: Cylinder & Crankcase

Diagram

Parts List

Reference
Description
Price


1
6E3W009004EJ
Crank cylinder assembly
Loading…

↗
2
6E3151000294
Crankcase assembly
Loading…

↗
3
650113700000
Check valve assembly
Loading…

↗
4
650113700100
Check valve assembly
Loading…

↗
5
6E5113720000
Nipple, hose
Loading…

↗
6
936040806200
Pin,dowel (626)
Loading…

↗
7
9010506M1600
Bolt (6e0)
Loading…

↗
9
6E0243780000
Pipe, joint
Loading…

↗
10
904670601600
Clip (655)
Loading…

↗
12
9044507MA300
Hose (l200)
Loading…

↗
13
9044507M3200
Hose (l200)
Loading…

↗
14
9044507M2800
Hose (l200)
Loading…

↗
17
9321031MJ500
O-ring
Loading…

↗
18
9310110M2500
Oil seal(6e0)
Loading…

↗
19
973950601600
Bolt, hexagon deep recess
Loading…

↗
20
929900660000
Washer, plain (646)
Loading…

↗
22
6E311193A100
Gasket,head cover
Loading…

↗
23
9010506M1400
Bolt (6e0)
Loading…

↗
24
6E341111019M
Inner cover, exhaust
Loading…

↗
25
6E341112A100
Gasket,inner cover exhaust
Loading…

↗
26
6E341113019M
Outer cover, exhaust
Loading…

↗
27
6E341114A100
Gasket,outer cover exhaust
Loading…

↗
28
9010506M2400
Bolt (6g1)
Loading…

↗
31
6E3114120000
Crank 1
Loading…

↗
32
6E3114220000
Crank 2
Loading…

↗
34
93306204U000
Bearing(6e0)
Loading…

↗
35
93310418V100
Bearing (6e0)
Loading…

↗
36
6E0116510100
Rod, connecting
Loading…

↗
37
902091811200
Washer 132116850000
Loading…

↗
38
9310120M2900
Oil seal(6j1)
Loading…

↗
39
676455670009
Shim (t:0.90mm)
Loading…

↗
40
6E3116310098
Piston
Loading…

↗
41
6J1116100000
Piston ring set (std)
Loading…

↗
42
93310112V000
Bearing (6e0)
Loading…

↗
43
527116330000
Pin, piston
Loading…

↗
44
934501302200
Circlip 132116340000
Loading…

↗
45
6E5124110100
Thermostat
Loading…

↗
46
6E045113A100
Gasket,upper casing
Loading…

↗
47
947020027200
Plug, spark (br7hs)
