6CEM (1985)
Cylinder & Crankcase

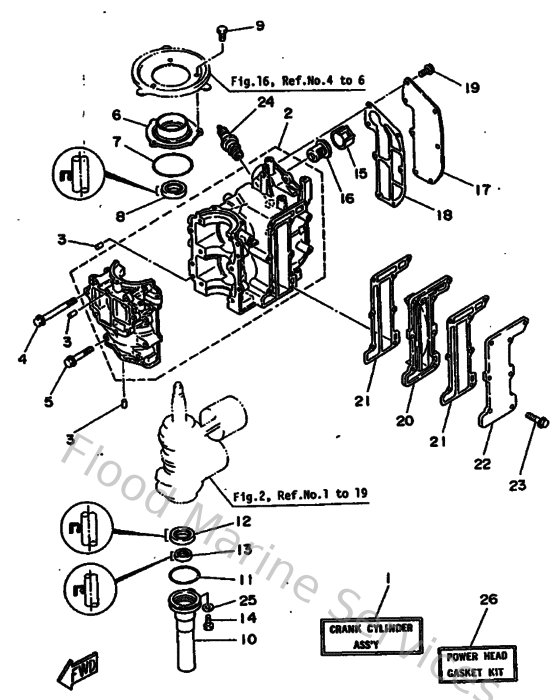

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
6G1W009000EJ
Crank Cylinder assembly
Loading…
↗
2
6G1151000094
Crankcase assembly
Loading…
↗
3
936040806200
Pin,dowel (626)
Loading…
↗
4
9010506M2600
Bolt (6g1)
Loading…
↗
5
9010506M2500
Bolt (6g1)
Loading…
↗
6
6G1153590094
Housing, oil seal
Loading…
↗
7
9321054M5400
O-ring (6g1)
Loading…
↗
8
9310220M2500
Oil seal (6e0)
Loading…
↗
9
973130601600
Bolt, hexagon deep recess
Loading…
↗
10
6G115396009M
Housing, oil seal
Loading…
↗
11
932104215900
O-ring (647)
Loading…
↗
12
9310220M1500
Oil seal (6e0)
Loading…
↗
13
9310111M2300
Oil seal (6g1)
Loading…
↗
14
973950601600
Bolt, hexagon deep recess
Loading…
↗
15
9038722M5000
Collar (6g1)
Loading…
↗
16
677124110000
Thermostat
Loading…
↗
17
6G111191009M
Cover, cylinder head 1
Loading…
↗
18
6G1111930000
Gasket, head cover 1
Loading…
↗
19
9010506M1400
Bolt (6e0)
Loading…
↗
20
6G141111019M
Inner cover, exhaust
Loading…
↗
21
6G1411120100
Gasket, exhaust inner cover
Loading…
↗
22
6G141113011S
Outer cover, exhaust
Loading…
↗
23
958950602500
Bolt, flange deep recess
Loading…
↗
24
947010027300
Plug, spark (b6hs-10)
Loading…
↗
25
929900660000
Washer, plain (646)
Loading…
↗
26
6G1W00010000
Gasket kit, power unit
Loading…
↗
