90AETOL (1987)
Cylinder & Crankcase

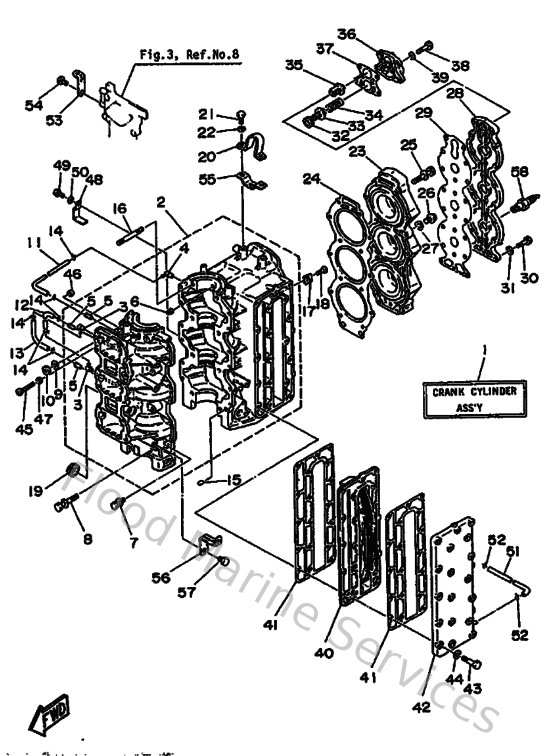

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
2
6H1151000094
Crankcase assembly
Loading…
↗
3
688113700000
Check valve assembly
Loading…
↗
4
650113700000
Check valve assembly
Loading…
↗
5
624144850000
Pipe, joint
Loading…
↗
6
663115180100
Lock, bearing
Loading…
↗
7
9011906M1200
Bolt, with washer (697)
Loading…
↗
9
902011043000
Washer (7a9)
Loading…
↗
10
953141060000
Nut(3bm)
Loading…
↗
11
904450726000
Hose (l390)
Loading…
↗
12
9044507M0000
Hose (l200)
Loading…
↗
13
9044507MF100
Hose (l570)
Loading…
↗
14
904670601600
Clip (655)
Loading…
↗
15
936081206300
Pin, dowel (626)
Loading…
↗
16
9011610M0600
Bolt, stud (688)
Loading…
↗
17
688113250000
Anode
Loading…
↗
18
987800401600
Screw, flat head(ga5)
Loading…
↗
19
9048024M0400
Grommet (688)
Loading…
↗
20
688111190000
Hanger, engine
Loading…
↗
21
970130802000
Bolt(6td)
Loading…
↗
22
929030810000
Ybs67-8 washer, spring
Loading…
↗
23
6H1111110094
Head, cylinder 1
Loading…
↗
24
68811181A200
Gasket, cylinder head 1
Loading…
↗
25
9011908M2100
Bolt, with washer(63v)
Loading…
↗
26
9034014M0000
Plug, straight screw(62y)
Loading…
↗
27
904301411500
Gasket (663)
Loading…
↗
28
68811191001S
Cover, cylinder head 1
Loading…
↗
29
688111930100
Gasket, head cover 1
Loading…
↗
30
973130602500
Bolt
Loading…
↗
31
929900660000
Washer, plain (646)
Loading…
↗
32
9048020M0500
Grommet (688)
Loading…
↗
33
688124160000
Valve, pressure control
Loading…
↗
34
9050116M1100
Spring, compression (688)
Loading…
↗
35
6E5124113000
Thermostat
Loading…
↗
36
68812413009M
Cover, thermostat
Loading…
↗
37
688124140000
Gasket, cover
Loading…
↗
38
970140603500
Bolt(3rv)
Loading…
↗
39
929030660000
Washer, plain (646)
Loading…
↗
40
68841111009M
Inner cover, exhaust
Loading…
↗
41
68841112A000
Gasket, exhaust inner cover
Loading…
↗
42
68841113009M
Outer cover, exhaust
Loading…
↗
43
973130804000
Bolt, Hexagon
Loading…
↗
44
929901010000
Ybs67-10 washer, spring
Loading…
↗
45
901570601400
Screw, pan head(697)
Loading…
↗
46
688441940000
Cap
Loading…
↗
47
953800670000
Nut
Loading…
↗
48
9046512M0300
Clamp, cord (688)
Loading…
↗
49
973130601000
Bolt
Loading…
↗
50
929030610000
Washer(6a1)
Loading…
↗
51
6H4243110000
Pipe 1
Loading…
↗
52
904670800400
Clip, pipe 6162435600
Loading…
↗
53
6H1157720000
Stay 2
Loading…
↗
54
973130601200
Bolt(gh1)
Loading…
↗
55
6H1157730000
Stay 3
Loading…
↗
56
6H1217960000
Hinge
Loading…
↗
57
973130801200
Bolt(62e)
Loading…
↗
58
947020024700
Plug, spark (br8hs-10)
Loading…
↗
