Yamaha Outboard Parts - Cylinder & Crankcase - F15AEP (2000) | Flood Marine

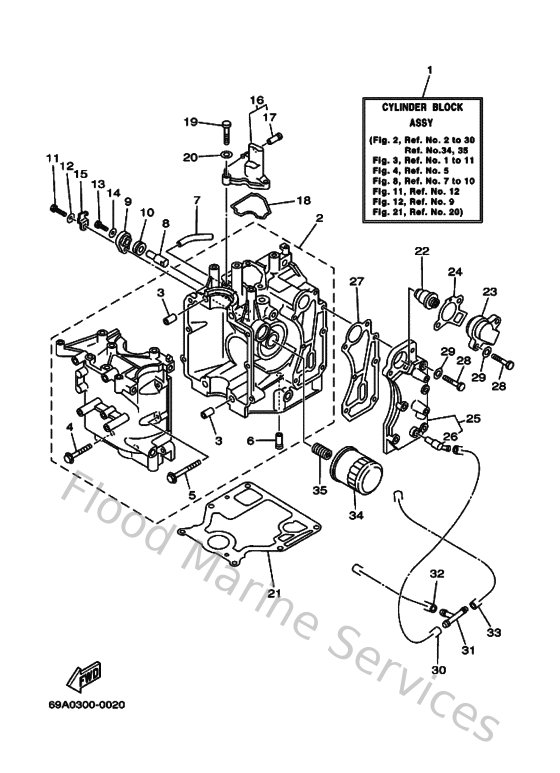

Diagram: Cylinder & Crankcase

Diagram

Parts List

Reference
Description
Price


1
66MW009B011S
Cylinder Block assembly
Loading…

↗
2
66M15100011S
Crankcase assembly
Loading…

↗
3
995301011400
Pin, dowel(3vd)
Loading…

↗
4
9011908M6600
Bolt, with washer
Loading…

↗
5
9011906M1400
Bolt, with washer (677)
Loading…

↗
6
6E5243770000
Pipe, joint
Loading…

↗
7
9044510M4600
Hose (l200)
Loading…

↗
8
66M113250000
Anode
Loading…

↗
9
66M113270094
Cover, anode
Loading…

↗
10
66M113280000
Grommet, anode
Loading…

↗
11
970950602000
Bolt(7u8)
Loading…

↗
12
929950660000
Washer, plain (646)
Loading…

↗
13
970950501200
Bolt, hexagon
Loading…

↗
14
929900560000
Washer, plain (646)
Loading…

↗
15
66M125350000
Plate
Loading…

↗
16
66M11168001S
Cover Breather
Loading…

↗
18
66M113570000
Seal, cylinder 3
Loading…

↗
19
970800602000
Bolt(7u8)
Loading…

↗
21
66M113510000
Gasket, cylinder
Loading…

↗
22
66M124110000
Thermostat
Loading…

↗
23
6H312413001S
Cover, thermostat
Loading…

↗
24
62Y124140000
Gasket, cover
Loading…

↗
26
676113720000
Nipple, hose
Loading…

↗
27
66M411140000
Gasket, exhaust outer cover
Loading…

↗
28
970130603000
Bolt
Loading…

↗
29
929900660000
Washer, plain (646)
Loading…

↗
30
904450906100
Hose (L65)
Loading…

↗
31
688243780000
Pipe, joint
Loading…

↗
32
90445092K100
Hose (l420)
Loading…

↗
33
904450910500
Hose (l420)
Loading…

↗
34
5GH134400000
Element assembly, oil cleaner
Loading…

↗
35
9040120M0000
Bolt, union(62y)
Loading…

↗
