F4AMH (2000)
Cylinder & Crankcase

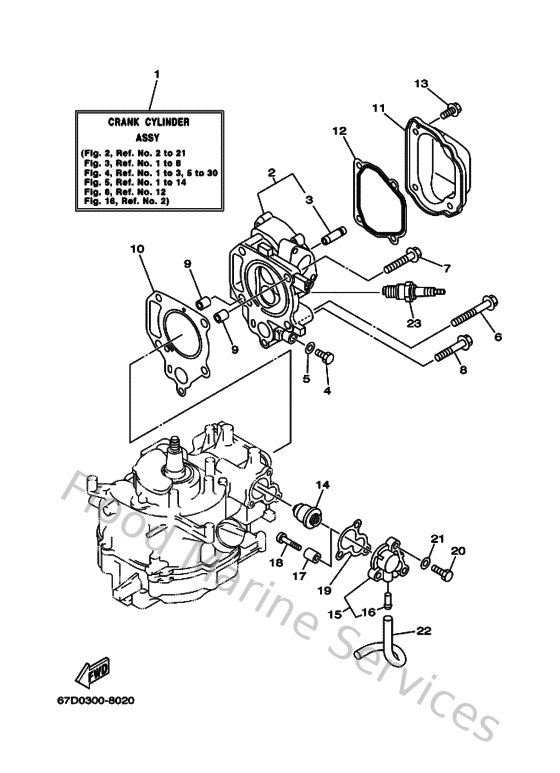

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
67DW0090011S
Crank Cylinder assembly
Loading…
↗
2
67D111110094
Head Cylinder (F4)
Loading…
↗
3
6EEE11331000
Guide, valve 1
Loading…
↗
4
970950801400
Bolt, hexagon deep recess
Loading…
↗
5
904300814300
Gasket (256-11198-00)
Loading…
↗
6
9010508M8100
Bolt, Flange
Loading…
↗
7
9010508M8000
Bolt, Flange
Loading…
↗
8
9010506M2500
Bolt (6g1)
Loading…
↗
9
995101011400
Pin, dowel(3vd)
Loading…
↗
10
67D11181A000
Gasket, cylinder head 1
Loading…
↗
11
67D111910000
Cover, cylinder head 1
Loading…
↗
12
67D11193A000
Gasket head cover
Loading…
↗
13
9010506M1400
Bolt (6e0)
Loading…
↗
14
66M124110100
Thermostat
Loading…
↗
15
67D12413001S
Cover, thermostat
Loading…
↗
16
650243780000
Pipe, joint 2
Loading…
↗
17
6G8113250000
Anode
Loading…
↗
18
978800502500
Screw, panhead (a93)
Loading…
↗
19
67D12414A000
Gasket, cover
Loading…
↗
20
970950602000
Bolt(7u8)
Loading…
↗
21
929950660000
Washer, plain (646)
Loading…
↗
22
9044509M0000
Hose (l180)
Loading…
↗
23
947020024800
Plug, spark (br6hs)
Loading…
↗
