Yamaha Outboard Parts - Cylinder & Crankcase - F50AE (2001) | Flood Marine

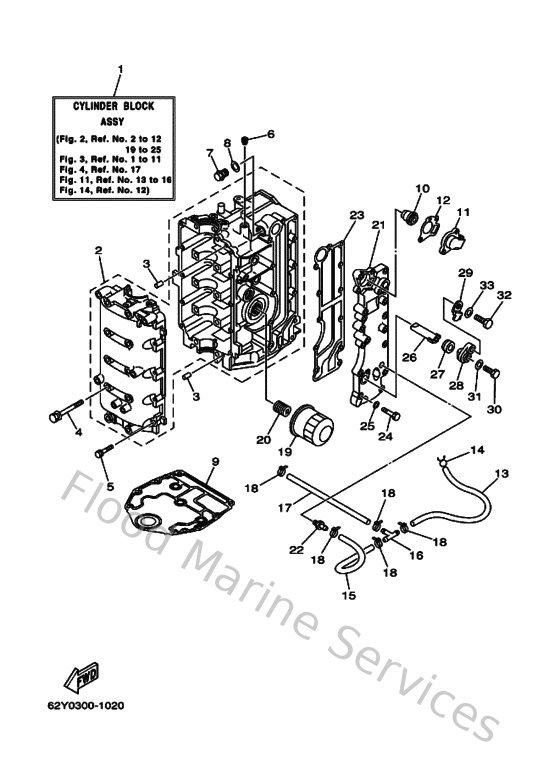

Diagram: Cylinder & Crankcase

Diagram

Parts List

Reference
Description
Price


1
64JW009B004D
Cylinder block assembly (d:18mm)
Loading…

↗
2
62Y151001094
Crankcase assembly
Loading…

↗
3
936061201900
Pin, dowel (614)
Loading…

↗
4
9011908M0100
Bolt, with washer(62y)
Loading…

↗
5
975130653500
Bolt(3rv)
Loading…

↗
6
903445100100
Plug, taper screw
Loading…

↗
7
9034014M0600
Plug, straight screw(62y)
Loading…

↗
8
904301411500
Gasket (663)
Loading…

↗
9
67C113510100
Gasket, cylinder
Loading…

↗
10
6G8124110200
Thermostat
Loading…

↗
11
6H312413009M
Cover, thermostat
Loading…

↗
12
62Y124140000
Gasket, cover
Loading…

↗
13
90445092K100
Hose (l420)
Loading…

↗
14
9046708M1800
Clip
Loading…

↗
15
904450906800
Hose (l420)
Loading…

↗
16
688243780000
Pipe, joint
Loading…

↗
17
904450901000
Hose (L260)
Loading…

↗
18
9046511M1000
Clamp
Loading…

↗
19
5GH134400000
Element assembly, oil cleaner
Loading…

↗
20
9040120M0000
Bolt, union(62y)
Loading…

↗
21
62Y41113209M
Outer Cover Exhaust
Loading…

↗
22
62Y124811000
Pipe 1
Loading…

↗
23
62Y411140000
Gasket, exhaust outer cover
Loading…

↗
24
970140603500
Bolt(3rv)
Loading…

↗
25
929030660000
Washer, plain (646)
Loading…

↗
26
62Y113250000
Anode
Loading…

↗
27
66M113280000
Grommet, anode
Loading…

↗
28
66M113270094
Cover, anode
Loading…

↗
29
66M125350000
Plate
Loading…

↗
30
970950501200
Bolt, hexagon
Loading…

↗
31
929950560000
Washer, plain (646)
Loading…

↗
32
970130602000
Bolt(62y)
Loading…

↗
