F80AET (1999)
Cylinder & Crankcase

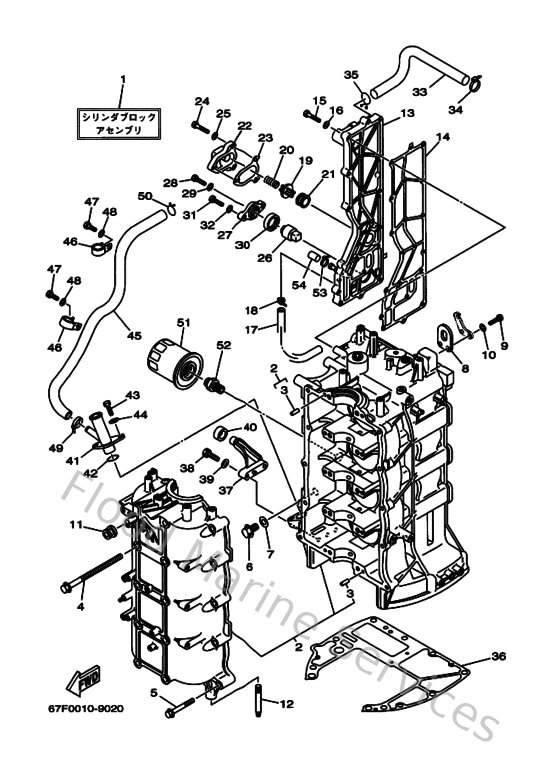

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
67FW009B001S
Cylinder Block assembly (6D8 Brg)
Loading…
↗
2
67F15100001S
Crankcase Assembly
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
9011910M8800
Bolt, with washer
Loading…
↗
5
9011908M6600
Bolt, with washer
Loading…
↗
6
9034014M0600
Plug, straight screw(62y)
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
8
62Y111190000
Hanger, engine
Loading…
↗
9
970800602000
Bolt(7u8)
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
904801207200
Grommet(53y)
Loading…
↗
12
67F151420000
Guide 1
Loading…
↗
13
67F41113009S
Outer Cover, Exhaust
Loading…
↗
14
67F41114A000
Gasket, exhaust outer cover
Loading…
↗
15
970800603000
Bolt(jf7)
Loading…
↗
16
929030660000
Washer, plain (646)
Loading…
↗
17
9044510M4000
Hose (l400)
Loading…
↗
18
904651009800
Clamp
Loading…
↗
19
6G5124160000
Valve, pressure control
Loading…
↗
20
9050116M1100
Spring, compression (688)
Loading…
↗
21
9048020M0500
Grommet (688)
Loading…
↗
22
67F1246A001S
Cover 1
Loading…
↗
23
67F12435A000
Gasket
Loading…
↗
24
970130602000
Bolt(62y)
Loading…
↗
25
929900660000
Washer, plain (646)
Loading…
↗
26
67F113250000
Anode
Loading…
↗
27
67F113270094
Anode cover assembly
Loading…
↗
30
67F113280000
Grommet, anode
Loading…
↗
31
970750802500
Bolt, hexagon deep recess
Loading…
↗
32
929950860000
Washer, plain (663)
Loading…
↗
33
67F1243A0000
Hose 1
Loading…
↗
35
9046720M1500
Clip
Loading…
↗
36
67F113510000
Gasket, cylinder
Loading…
↗
37
67F427610100
Stopper
Loading…
↗
38
970950602500
Bolt
Loading…
↗
40
663445330000
Damper, upper mount
Loading…
↗
42
9321019MJ300
O-ring
Loading…
↗
43
970950601600
Bolt, hexagon deep recess
Loading…
↗
45
67F153930000
Pipe, Breather 2
Loading…
↗
46
9046508M8500
Clamp
Loading…
↗
47
970800601200
Bolt(gh1)
Loading…
↗
50
9046715M1400
Clip(62y)
Loading…
↗
51
3FV134400000
Element assembly, oil cleaner
Loading…
↗
52
904012000700
Bolt, union
Loading…
↗
53
9046511M1000
Clamp
Loading…
↗
54
67F134480000
Cap
Loading…
↗
