F80AET (2001)
Cylinder & Crankcase

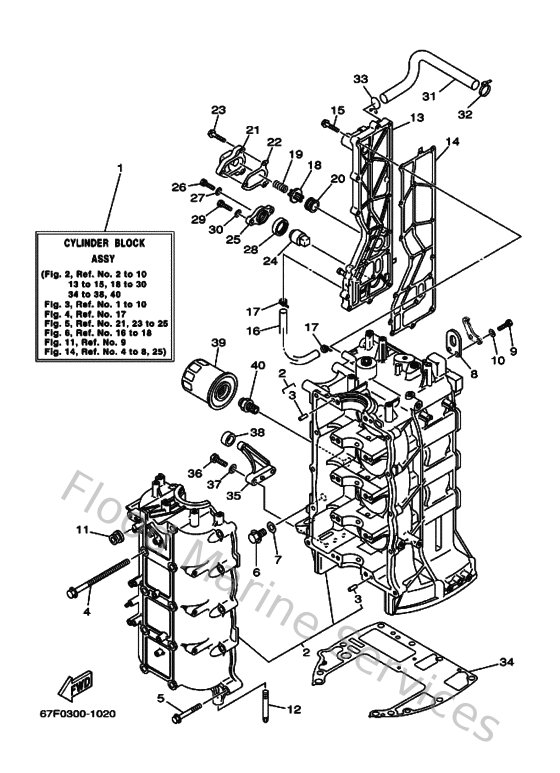

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
67FW009B021S
Cylinder Block assembly
Loading…
↗
2
67F15100021S
Crankcase assembly
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
9011910M8800
Bolt, with washer
Loading…
↗
5
9011908M6600
Bolt, with washer
Loading…
↗
6
9034014M0600
Plug, straight screw(62y)
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
8
62Y111190000
Hanger, engine
Loading…
↗
9
970950602000
Bolt(7u8)
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
904801207200
Grommet(53y)
Loading…
↗
12
67F151420000
Guide 1
Loading…
↗
13
67F41113319S
Outer Cover Exhaust
Loading…
↗
14
67F41114A000
Gasket, exhaust outer cover
Loading…
↗
15
9011906MA400
Bolt, with washer
Loading…
↗
16
9044510M4000
Hose (l400)
Loading…
↗
17
904651009800
Clamp
Loading…
↗
18
6G5124160000
Valve, pressure control
Loading…
↗
19
9050116M1100
Spring, compression (688)
Loading…
↗
20
9048020M0500
Grommet (688)
Loading…
↗
21
67F1246AA09S
Cover 1
Loading…
↗
22
67F12435A000
Gasket
Loading…
↗
23
9011906MA200
Bolt, with washer
Loading…
↗
24
67F113250000
Anode
Loading…
↗
25
67F113270094
Anode cover assembly
Loading…
↗
26
970750602000
Bolt(7u8)
Loading…
↗
27
929900660000
Washer, plain (646)
Loading…
↗
28
67F113280000
Grommet, anode
Loading…
↗
29
970750802500
Bolt, hexagon deep recess
Loading…
↗
30
929950860000
Washer, plain (663)
Loading…
↗
31
67F1243A0000
Hose 1
Loading…
↗
33
9046720M1500
Clip
Loading…
↗
34
67F113510100
Gasket, cylinder
Loading…
↗
35
67F427610094
Stopper
Loading…
↗
36
970950602500
Bolt
Loading…
↗
38
68F445330000
Damper, upper mount rubber
Loading…
↗
39
5GH134400000
Element assembly, oil cleaner
Loading…
↗
40
904012014500
Bolt, union
Loading…
↗
