F9.9BMH (2001)
Cylinder & Crankcase

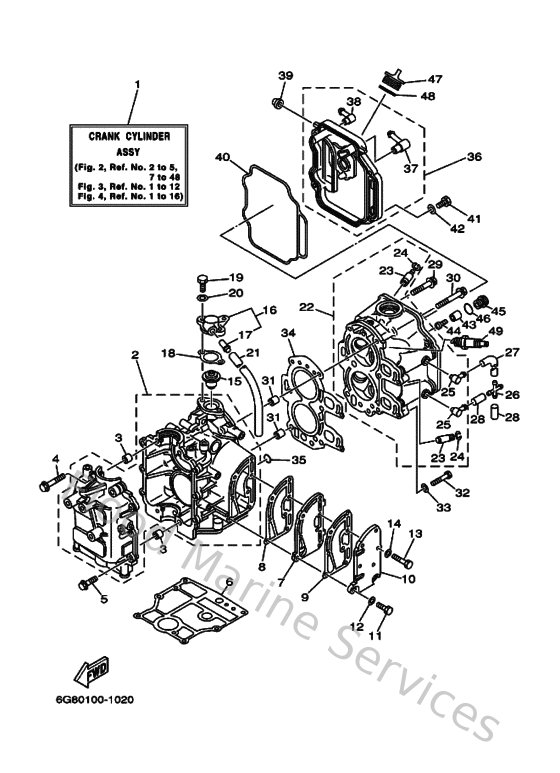

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
6G8W0090341S
Crank Cylinder assembly
Loading…
↗
2
6G815100051S
Crankcase assembly
Loading…
↗
3
995101011400
Pin, dowel(3vd)
Loading…
↗
4
9011908M1800
Bolt, with washer
Loading…
↗
5
9011906M1200
Bolt, with washer (697)
Loading…
↗
6
6G811351A000
Gasket, cylinder
Loading…
↗
7
6G841111021S
Inner Cover, Exhaust
Loading…
↗
8
6G8411120200
Gasket, exhaust inner cover
Loading…
↗
9
6G8411140000
Gasket, exhaust outer cover
Loading…
↗
10
6G841113101S
Outer Cover Exhaust
Loading…
↗
11
970130602500
Bolt(62y)
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
970130603000
Bolt
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
6G8124110200
Thermostat
Loading…
↗
16
6G812413001S
Cover, thermostat
Loading…
↗
17
6E5243770000
Pipe, joint
Loading…
↗
18
6G812414A000
Gasket, cover
Loading…
↗
19
970130602000
Bolt(62y)
Loading…
↗
21
9044511M6600
Hose (l800)
Loading…
↗
22
6G811111031S
Head, Cylinder 1
Loading…
↗
23
6G8111331000
Guide Valve Intake (1St 0.S)
Loading…
↗
24
9345009M0100
Circlip (6g8)
Loading…
↗
25
676113720000
Nipple, hose
Loading…
↗
26
6G9243790000
Pipe Joint 4
Loading…
↗
27
6G8124810100
Pipe 1
Loading…
↗
28
904450922000
Hose (l1500)
Loading…
↗
29
9010508M3700
Bolt, Flange
Loading…
↗
30
9010508M3600
Bolt (6g8)
Loading…
↗
32
970140603500
Bolt(3rv)
Loading…
↗
34
6G811181A100
Gasket, cylinder head 1
Loading…
↗
35
9321011M5900
O-ring (6g8)
Loading…
↗
36
6G811191011S
Cover, Cylinder Head 1
Loading…
↗
37
6G8153730000
Pipe Breather
Loading…
↗
39
6G8813360000
Grommet
Loading…
↗
40
6G8113560000
Seal
Loading…
↗
43
6G8113250000
Anode
Loading…
↗
44
978800502500
Screw, panhead (a93)
Loading…
↗
45
6G811197A000
Plug, blind
Loading…
↗
46
9321013M6300
O-ring (6g8)
Loading…
↗
47
6G8153630000
Plug, oil
Loading…
↗
48
9321024M7900
O-ring
Loading…
↗
49
947010028200
Plug, spark (cr6hs)
Loading…
↗
