FT9.9DMHSL (1999)
Cylinder & Crankcase

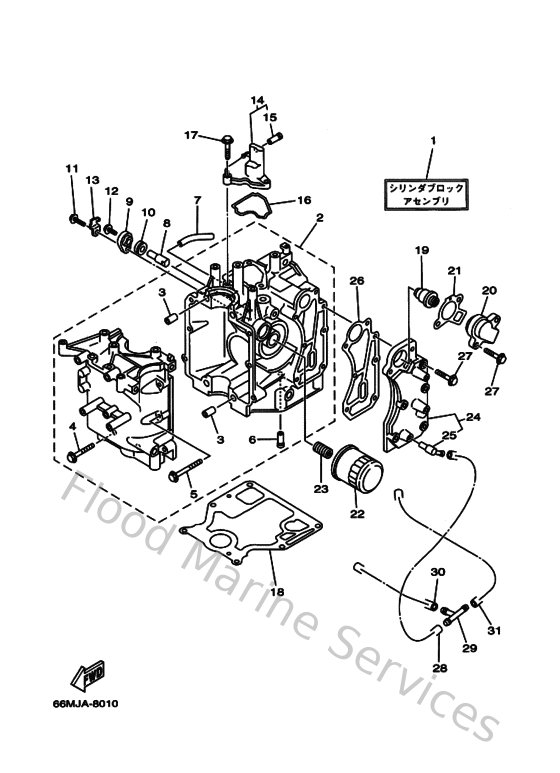

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
66MW009B001S
Cylinder Block assembly (With Reli
Loading…
↗
2
66M15100001S
Crankcase assembly
Loading…
↗
3
995301011400
Pin, dowel(3vd)
Loading…
↗
4
9011908M2000
Bolt, with washer
Loading…
↗
5
9011906M1400
Bolt, with washer (677)
Loading…
↗
6
6E5243770000
Pipe, joint
Loading…
↗
7
904451075200
Hose (l200)
Loading…
↗
8
66M113250000
Anode
Loading…
↗
9
66M113270094
Cover, anode
Loading…
↗
10
66M113280000
Grommet, anode
Loading…
↗
11
975950652000
Bolt(7u8)
Loading…
↗
12
970950501200
Bolt, hexagon
Loading…
↗
13
66M125350000
Plate
Loading…
↗
14
66M11168001S
Cover Breather
Loading…
↗
16
66M113570000
Seal, cylinder 3
Loading…
↗
17
970800602000
Bolt(7u8)
Loading…
↗
18
66M113510000
Gasket, cylinder
Loading…
↗
19
66M124110000
Thermostat
Loading…
↗
20
6H312413001S
Cover, thermostat
Loading…
↗
21
62Y124140000
Gasket, cover
Loading…
↗
22
3FV134400000
Element assembly, oil cleaner
Loading…
↗
23
9040120M0000
Bolt, union(62y)
Loading…
↗
25
676113720000
Nipple, hose
Loading…
↗
26
66M411140100
Gasket, exhaust outer cover
Loading…
↗
27
975130653000
Bolt, with washer(63m)
Loading…
↗
28
904450906100
Hose (L65)
Loading…
↗
29
688243780000
Pipe, joint
Loading…
↗
30
904450908600
Hose (l1500)
Loading…
↗
31
904450910500
Hose (l420)
Loading…
↗
