Yamaha Outboard Parts - Cylinder & Crankcase - L140BETOL (1989) | Flood Marine

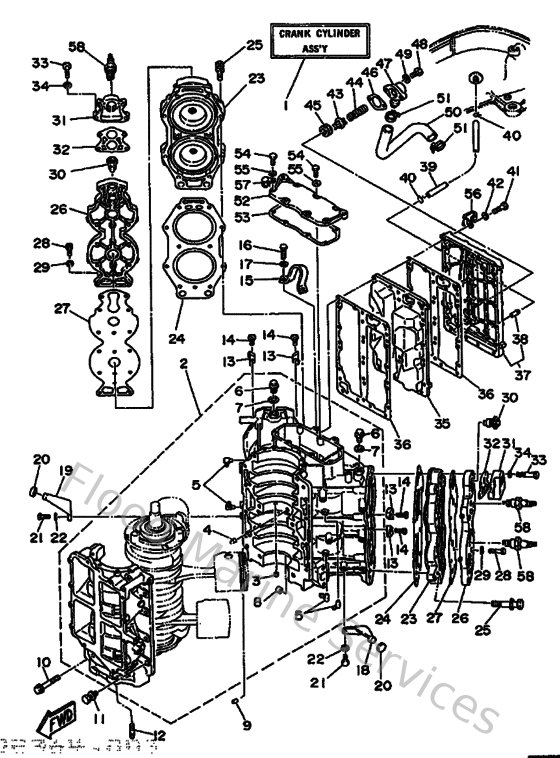

Diagram: Cylinder & Crankcase

Diagram

Parts List

Reference
Description
Price


2
6L1151000194
Crankcase Assembly
Loading…

↗
3
624113790000
Valve, check
Loading…

↗
5
6E5113720000
Nipple, hose
Loading…

↗
7
904301411500
Gasket (663)
Loading…

↗
9
936081206300
Pin, dowel (626)
Loading…

↗
10
9010510M2000
Bolt (6e5)
Loading…

↗
12
9011908M1400
Bolt, with washer
Loading…

↗
13
6E5113250000
Anode
Loading…

↗
14
987800401600
Screw, flat head(ga5)
Loading…

↗
15
6E5111190000
Hanger, Engine
Loading…

↗
16
970130802000
Bolt(6td)
Loading…

↗
17
929900810000
Ybs67-8 washer, spring
Loading…

↗
18
6E5427610094
Stopper
Loading…

↗
21
970800602000
Bolt(7u8)
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
6L1111110094
Head, cylinder 1
Loading…

↗
24
6E511181A200
Gasket, cylinder head 1
Loading…

↗
25
9011908M2100
Bolt, with washer(63v)
Loading…

↗
26
6E511191019M
Cover, cylinder head 1
Loading…

↗
27
6E511193A000
Gasket, head cover 1
Loading…

↗
28
973130603000
Bolt
Loading…

↗
30
6E5124111000
Thermostat
Loading…

↗
31
6G512413009M
Cover, thermostat
Loading…

↗
32
68812414A100
Gasket, cover
Loading…

↗
33
973130604000
Bolt (682)
Loading…

↗
35
6L141111001S
Inner cover, exhaust
Loading…

↗
36
6E5411120000
Gasket, exhaust inner cover
Loading…

↗
37
6E541113019M
Outer cover, exhaust
Loading…

↗
38
6EEF43770000
Pipe, joint 2
Loading…

↗
39
6E5243120000
Pipe 2
Loading…

↗
40
904670800400
Clip, pipe 6162435600
Loading…

↗
41
970130603500
Bolt(3rv)
Loading…

↗
43
6G5124160000
Valve, pressure control
Loading…

↗
44
9050116M1100
Spring, compression (688)
Loading…

↗
45
9048020M0500
Grommet (688)
Loading…

↗
46
6G5113820000
Gasket 2
Loading…

↗
48
973130602000
Bolt(7u8)
Loading…

↗
50
6E5125760000
Hose 1
Loading…

↗
51
9046513M1800
Clamp
Loading…

↗
52
6E511371001S
Cover
Loading…

↗
53
6E5113810000
Gasket 1
Loading…

↗
56
9046508M0800
Clamp (6e5)
Loading…

↗
57
904650802800
Clamp (1e6)
Loading…

↗
58
947020030900
Plug, spark (br9hs-10)
Loading…

↗
