L150CETOL (1993)
Cylinder & Crankcase

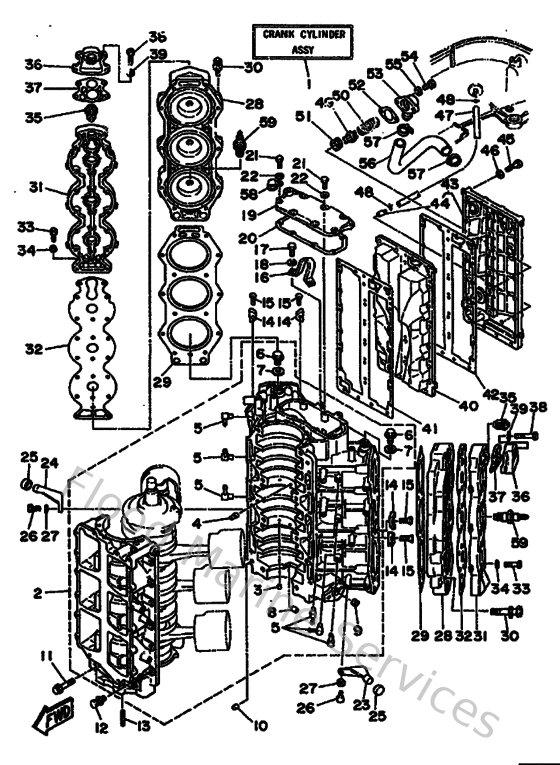

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
6R4W0090151S
Crank Cylinder assembly
Loading…
↗
2
6R2151000094
Crankcase Assembly
Loading…
↗
3
624113790000
Valve, check
Loading…
↗
4
663115180100
Lock, bearing
Loading…
↗
5
646113700100
Check valve assembly
Loading…
↗
6
9034014M0000
Plug, straight screw(62y)
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
8
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
9
903841401100
Bush, bimetal formed
Loading…
↗
10
936081206300
Pin, dowel (626)
Loading…
↗
11
9010510M2000
Bolt (6e5)
Loading…
↗
13
9011608M4500
Bolt, stud (6e5)
Loading…
↗
14
6E5113250000
Anode
Loading…
↗
15
987800401600
Screw, flat head(ga5)
Loading…
↗
16
6E5111190000
Hanger, Engine
Loading…
↗
17
970130802000
Bolt(6td)
Loading…
↗
18
929900810000
Ybs67-8 washer, spring
Loading…
↗
19
6K711371019M
Cover
Loading…
↗
20
6E511381A100
Gasket 1
Loading…
↗
21
970800602000
Bolt(7u8)
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
6E5427610094
Stopper
Loading…
↗
24
6E542762001S
Stopper
Loading…
↗
25
663445330000
Damper, upper mount
Loading…
↗
26
973130602000
Bolt(7u8)
Loading…
↗
28
6G511111031S
Head, cylinder 1
Loading…
↗
29
6G511181A300
Gasket, cylinder head 1
Loading…
↗
30
9011908M2100
Bolt, with washer(63v)
Loading…
↗
31
6G511191009M
Cover, cylinder head 1
Loading…
↗
32
970800603000
Bolt(jf7)
Loading…
↗
33
973130603000
Bolt
Loading…
↗
35
6E5124112000
Thermostat
Loading…
↗
36
6G512413001S
Cover, thermostat
Loading…
↗
37
68812414A100
Gasket, cover
Loading…
↗
38
973130604500
Bolt, hexagon
Loading…
↗
40
64D41111001S
Inner cover, exhaust
Loading…
↗
41
6G541112A100
Gasket, exhaust inner cover
Loading…
↗
42
6G541114A000
Gasket, exhaust inner cover
Loading…
↗
43
6R341113001S
Outer cover, exhaust
Loading…
↗
44
650243780000
Pipe, joint 2
Loading…
↗
45
970140603500
Bolt(3rv)
Loading…
↗
47
6E5243120000
Pipe 2
Loading…
↗
48
904670800400
Clip, pipe 6162435600
Loading…
↗
49
6G5124160000
Valve, pressure control
Loading…
↗
50
9050116M1100
Spring, compression (688)
Loading…
↗
51
9048020M0500
Grommet (688)
Loading…
↗
52
6G511382A100
Gasket 2
Loading…
↗
56
6G5125760000
Hose 1
Loading…
↗
57
9046513M3600
Clamp(6h4)
Loading…
↗
58
904650802800
Clamp (1e6)
Loading…
↗
59
947020024700
Plug, spark (br8hs-10)
Loading…
↗
