Yamaha Outboard Parts - Cylinder & Crankcase 1 - 130BETOL (1996) | Flood Marine

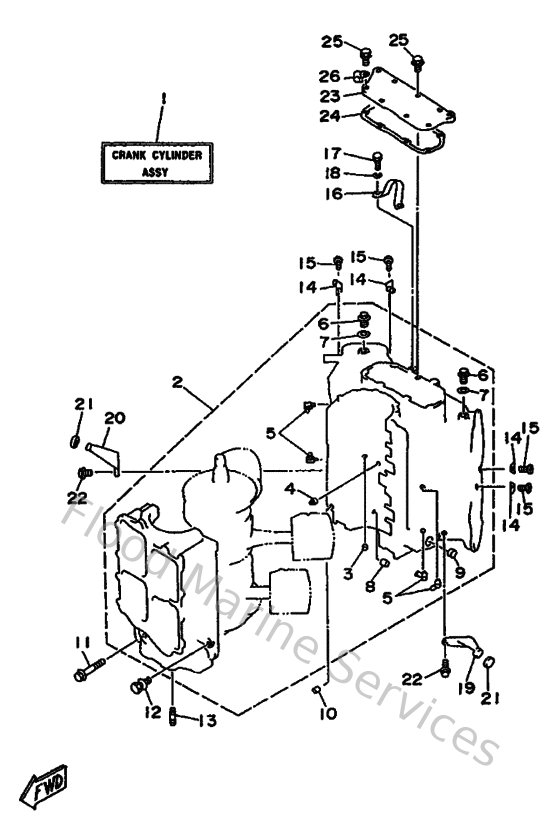

Diagram: Cylinder & Crankcase 1

Diagram

Parts List

Reference
Description
Price


1
6N6W0090144D
Crank Cylinder Assembly (Ref. #2~26 & Cylinder - Crank)
Loading…

↗
2
6N6151001000
Crankcase assembly
Loading…

↗
3
624113790000
Valve, check
Loading…

↗
4
663115180100
Lock, bearing
Loading…

↗
5
6E5113720000
Nipple, hose
Loading…

↗
14
6E5113250000
Anode
Loading…

↗
16
6E5111190000
Hanger, Engine
Loading…

↗
19
6E5427610094
Stopper
Loading…

↗
20
6E542762001S
Stopper
Loading…

↗
21
663445330000
Damper, upper mount
Loading…

↗
23
6K711371019M
Cover
Loading…

↗
24
6E511381A200
Gasket 1
Loading…

↗
