150AETOL (1998)
Cylinder & Crankcase 1

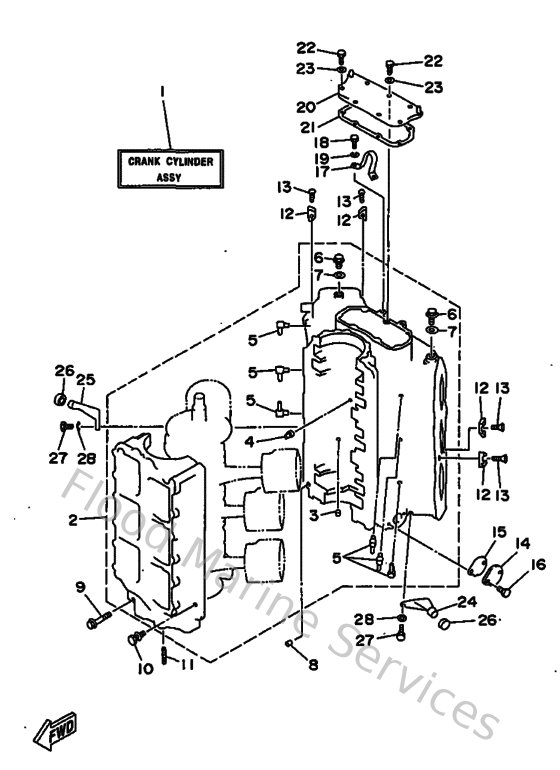

Diagram: Cylinder & Crankcase 1
Parts List
Reference
Description
Price
1
64CW0090014D
Crank Cylinder Assembly
Loading…
↗
2
64C151002094
Crankcase Assembly
Loading…
↗
3
624113790000
Valve, check
Loading…
↗
4
663115180100
Lock, bearing
Loading…
↗
5
646113700100
Check valve assembly
Loading…
↗
6
9033415M0200
Plug, Straight Screw
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
8
936081206300
Pin, dowel (626)
Loading…
↗
9
9010510M2000
Bolt (6e5)
Loading…
↗
11
9011608M4500
Bolt, stud (6e5)
Loading…
↗
12
6E5113250000
Anode
Loading…
↗
13
987800401500
Screw, flat head(ga5)
Loading…
↗
14
6R31131M0000
Cover
Loading…
↗
15
6R3113970100
Gasket
Loading…
↗
16
970140601600
Bolt, hexagon deep recess
Loading…
↗
17
6E5111190000
Hanger, Engine
Loading…
↗
18
970130802000
Bolt(6td)
Loading…
↗
19
929900810000
Ybs67-8 washer, spring
Loading…
↗
20
6E511371009M
Cover
Loading…
↗
21
6E511381A200
Gasket 1
Loading…
↗
22
970130602000
Bolt(62y)
Loading…
↗
23
929030660000
Washer, plain (646)
Loading…
↗
24
6E5427610094
Stopper
Loading…
↗
25
6E542762001S
Stopper
Loading…
↗
26
663445330000
Damper, upper mount
Loading…
↗
