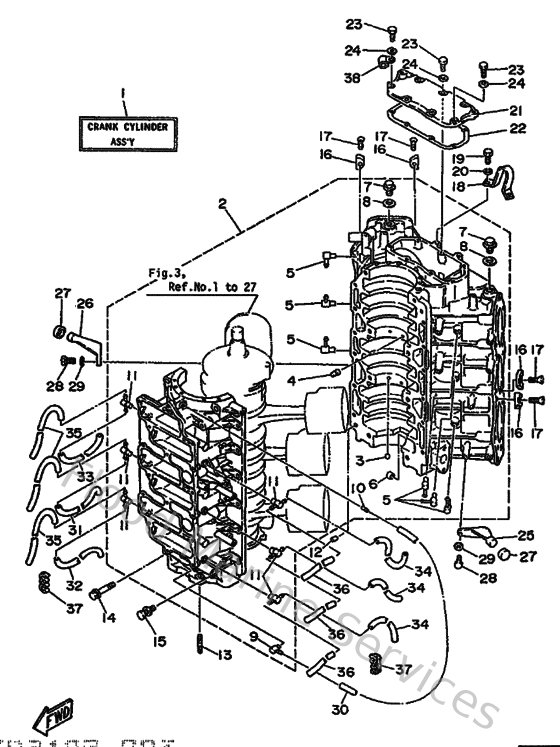

Diagram: Cylinder & Crankcase 1

Diagram

Parts List

Reference
Description
Price


2
6K7151000094
Crankcase Assembly
Loading…

↗
3
624113790000
Valve, check
Loading…

↗
4
663115180100
Lock, bearing
Loading…

↗
5
646113700000
Check valve assembly
Loading…

↗
7
9034014M0000
Plug, straight screw(62y)
Loading…

↗
8
904301411500
Gasket (663)
Loading…

↗
9
6E5113720000
Nipple, hose
Loading…

↗
10
624144850000
Pipe, joint
Loading…

↗
11
6F6113720000
Nipple, hose
Loading…

↗
12
936081206300
Pin, dowel (626)
Loading…

↗
13
9011608M1400
Bolt, stud (6e5)
Loading…

↗
14
9010510M2000
Bolt (6e5)
Loading…

↗
16
6E5113250000
Anode
Loading…

↗
17
986800401600
Screw, flat head(ga5)
Loading…

↗
18
6E5111190000
Hanger, Engine
Loading…

↗
19
970130802000
Bolt(6td)
Loading…

↗
20
929030810000
Ybs67-8 washer, spring
Loading…

↗
21
6K711371009M
Cover
Loading…

↗
22
6E511381A200
Gasket 1
Loading…

↗
23
973130602000
Bolt(7u8)
Loading…

↗
24
929030660000
Washer, plain (646)
Loading…

↗
25
6E5427610094
Stopper
Loading…

↗
26
6E542762001S
Stopper
Loading…

↗
27
663445330000
Damper, upper mount
Loading…

↗
30
904450700600
Hose (l770)
Loading…

↗
31
9044507M1100
Hose (l770)
Loading…

↗
32
9044507M0900
Hose (l390)
Loading…

↗
33
904450724000
Hose (l390)
Loading…

↗
34
9044507M9000
Hose (l390)
Loading…

↗
35
904450725700
Hose (l200)
Loading…

↗
36
9044507M0300
Hose (l200)
Loading…

↗
37
9046407M0500
Clamp (6g5)
Loading…

↗
