Yamaha Outboard Parts - Cylinder & Crankcase 1 - 225BETOL (1994) | Flood Marine

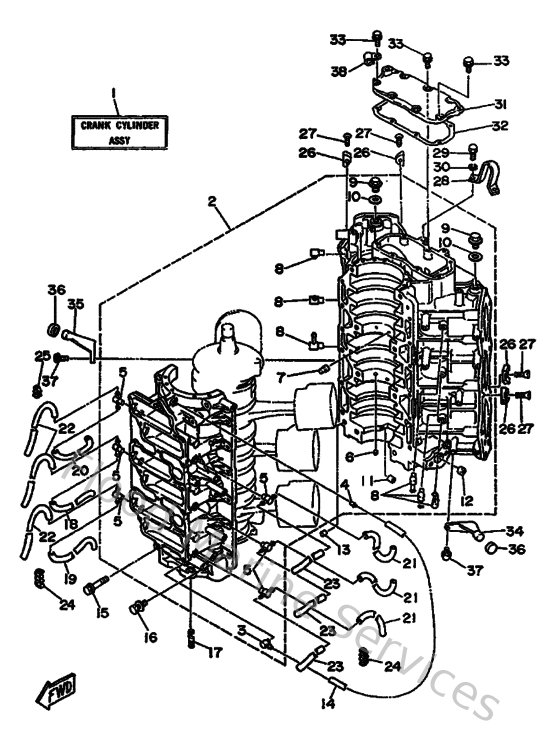

Diagram: Cylinder & Crankcase 1

Diagram

Parts List

Reference
Description
Price


1
6R5W0090154D
Crank-Cylinder.assembly
Loading…

↗
2
6R5151000194
Crankcase assembly
Loading…

↗
3
6E5113720000
Nipple, hose
Loading…

↗
4
624144850000
Pipe, joint
Loading…

↗
5
6F6113720100
Nipple, hose
Loading…

↗
6
624113790000
Valve, check
Loading…

↗
7
663115180100
Lock, bearing
Loading…

↗
8
646113700000
Check valve assembly
Loading…

↗
9
9034014M0000
Plug, straight screw(62y)
Loading…

↗
10
904301411500
Gasket (663)
Loading…

↗
11
9038406M0700
Bush, bimetal formed(6r3)
Loading…

↗
12
9038414M0900
Bush, bimetal formed(6r3)
Loading…

↗
13
936081206300
Pin, dowel (626)
Loading…

↗
14
9044507M1000
Hose (L770)
Loading…

↗
15
9010510M2000
Bolt (6e5)
Loading…

↗
17
9011608M1400
Bolt, stud (6e5)
Loading…

↗
18
9044507M1100
Hose (l770)
Loading…

↗
19
9044507M0900
Hose (l390)
Loading…

↗
20
904450724000
Hose (l390)
Loading…

↗
21
9044507M9000
Hose (l390)
Loading…

↗
22
904450725700
Hose (l200)
Loading…

↗
23
9044507M0300
Hose (l200)
Loading…

↗
24
9046407M0500
Clamp (6g5)
Loading…

↗
25
9046407M2000
Clamp(6h0)
Loading…

↗
26
6E5113250000
Anode
Loading…

↗
27
986800401600
Screw, flat head(ga5)
Loading…

↗
28
6E5111190000
Hanger, Engine
Loading…

↗
29
970130802000
Bolt(6td)
Loading…

↗
30
929900810000
Ybs67-8 washer, spring
Loading…

↗
31
6K711371019M
Cover
Loading…

↗
32
6E511381A100
Gasket 1
Loading…

↗
33
975950652000
Bolt(7u8)
Loading…

↗
34
6E542761001S
Stopper
Loading…

↗
35
6E5427620094
Stopper
Loading…

↗
36
663445330000
Damper, upper mount
Loading…

↗
38
904650802800
Clamp (1e6)
Loading…

↗
