Yamaha Outboard Parts - Cylinder & Crankcase 1 - 250AETOXLX (1990) | Flood Marine

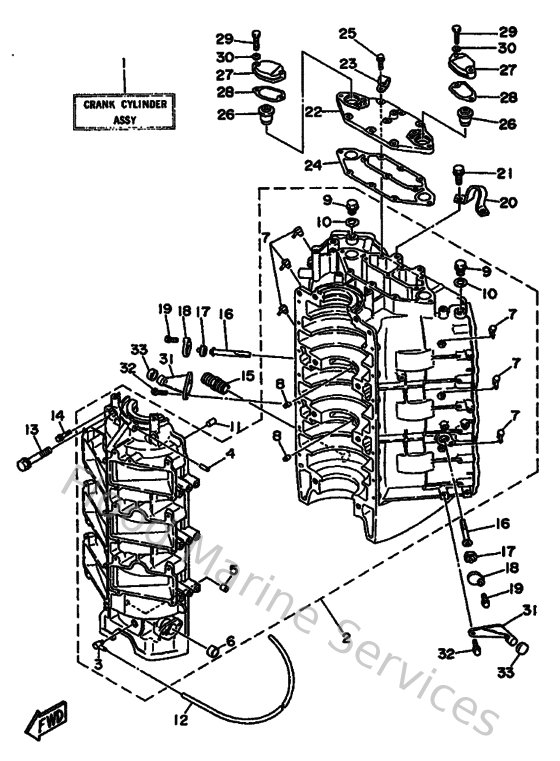

Diagram: Cylinder & Crankcase 1

Diagram

Parts List

Reference
Description
Price


3
6E5113720000
Nipple, hose
Loading…

↗
5
9038406M0700
Bush, bimetal formed(6r3)
Loading…

↗
6
9038316M0100
Bush, formed(61a)
Loading…

↗
8
663115180100
Lock, bearing
Loading…

↗
9
9034014M0000
Plug, straight screw(62y)
Loading…

↗
10
904301411500
Gasket (663)
Loading…

↗
11
936081206300
Pin, dowel (626)
Loading…

↗
12
904450700600
Hose (l770)
Loading…

↗
13
9010510M2000
Bolt (6e5)
Loading…

↗
14
9011906M1300
Bolt, with washer (682)
Loading…

↗
15
6G5125810000
Joint, hose
Loading…

↗
16
61A113250000
Anode
Loading…

↗
17
6H3113280000
Grommet, anode
Loading…

↗
18
6H3113270094
Cover, anode
Loading…

↗
19
975130651600
Bolt, hexagon deep recess
Loading…

↗
20
6E5111190000
Hanger, Engine
Loading…

↗
21
970800802000
Bolt(6td)
Loading…

↗
22
61A11371009M
Cover
Loading…

↗
23
904650802800
Clamp (1e6)
Loading…

↗
24
61A11381A000
Gasket 1
Loading…

↗
25
975130652000
Bolt, with washer(61b)
Loading…

↗
26
6E5124111000
Thermostat
Loading…

↗
27
6H412413001S
Cover, thermostat
Loading…

↗
28
6H4124140000
Gasket, cover
Loading…

↗
29
970130603500
Bolt(3rv)
Loading…

↗
30
929900660000
Washer, plain (646)
Loading…

↗
31
6E5427610094
Stopper
Loading…

↗
33
663445330000
Damper, upper mount
Loading…

↗
