P200ETOL (1995)
Cylinder & Crankcase 1

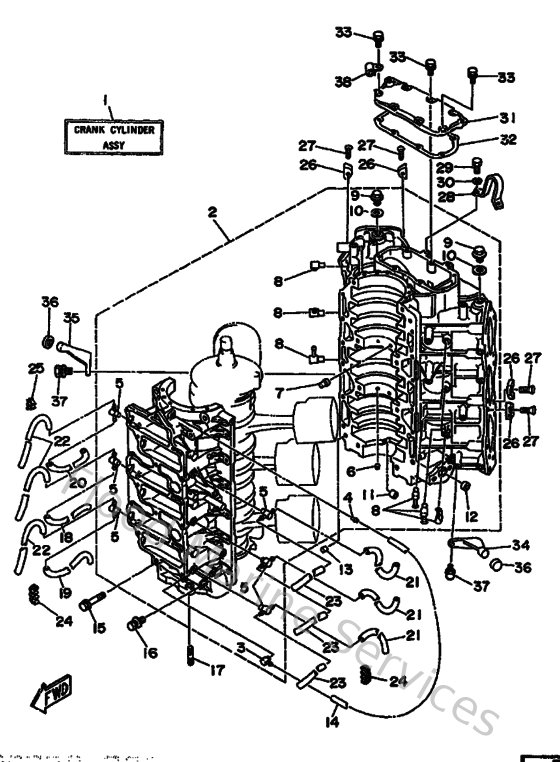

Diagram: Cylinder & Crankcase 1
Parts List
Reference
Description
Price
1
61HW0090144D
Crank Cylinder assembly
Loading…
↗
2
61H151000194
Crankcase Assembly
Loading…
↗
3
6E5113720000
Nipple, hose
Loading…
↗
4
624144850000
Pipe, joint
Loading…
↗
6
624113790000
Valve, check
Loading…
↗
7
663115180100
Lock, bearing
Loading…
↗
8
646113700000
Check valve assembly
Loading…
↗
10
904301411500
Gasket (663)
Loading…
↗
11
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
12
903841401100
Bush, bimetal formed
Loading…
↗
13
936081206300
Pin, dowel (626)
Loading…
↗
14
9044507M1000
Hose (L770)
Loading…
↗
15
9010510M2000
Bolt (6e5)
Loading…
↗
17
9011608M4500
Bolt, stud (6e5)
Loading…
↗
18
904450700600
Hose (l770)
Loading…
↗
19
9044507M0900
Hose (l390)
Loading…
↗
20
904450724000
Hose (l390)
Loading…
↗
21
9044507M9000
Hose (l390)
Loading…
↗
22
904450725700
Hose (l200)
Loading…
↗
23
9044507M0300
Hose (l200)
Loading…
↗
24
9046407M0500
Clamp (6g5)
Loading…
↗
25
9046407M2000
Clamp(6h0)
Loading…
↗
26
6E5113250000
Anode
Loading…
↗
27
987800401500
Screw, flat head(ga5)
Loading…
↗
28
6E5111190000
Hanger, Engine
Loading…
↗
29
970130802000
Bolt(6td)
Loading…
↗
30
929900810000
Ybs67-8 washer, spring
Loading…
↗
31
6K711371019M
Cover
Loading…
↗
32
6E511381A100
Gasket 1
Loading…
↗
34
6E542761001S
Stopper
Loading…
↗
35
6E5427620094
Stopper
Loading…
↗
36
663445330000
Damper, upper mount
Loading…
↗
37
975950652000
Bolt(7u8)
Loading…
↗
38
904650802800
Clamp (1e6)
Loading…
↗
