200JETOL (2001)
Cylinder & Crankcase 2

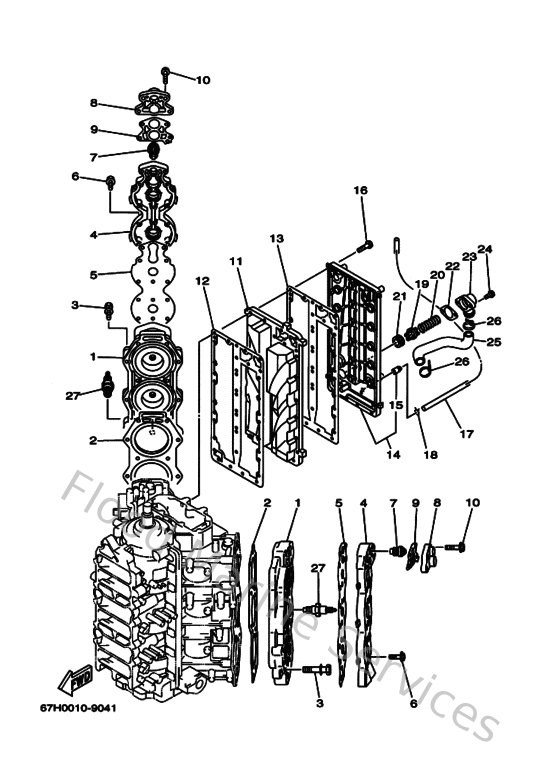

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
64E11111001S
Head, cylinder 1
Loading…
↗
2
6G511181A100
Gasket, cylinder head 1
Loading…
↗
3
9011908MA800
Bolt, with washer
Loading…
↗
4
6G511191001S
Cover, cylinder head 1
Loading…
↗
5
6G511193A000
Gasket, head cover 1
Loading…
↗
6
9011906MA400
Bolt, with washer
Loading…
↗
7
6E5124113000
Thermostat
Loading…
↗
8
68812413001S
Cover, thermostat
Loading…
↗
9
68812414A100
Gasket, cover
Loading…
↗
10
9011906MA600
Bolt, with washer
Loading…
↗
11
64D41111001S
Inner cover, exhaust
Loading…
↗
12
6G541112A100
Gasket, exhaust inner cover
Loading…
↗
14
67H41113001S
Outer Cover, Exhaust
Loading…
↗
15
6EEF43770000
Pipe, joint 2
Loading…
↗
16
9011906MA500
Bolt, with washer
Loading…
↗
17
9044509M2500
Hose (l1500)
Loading…
↗
18
904670800400
Clip, pipe 6162435600
Loading…
↗
19
6G5124160000
Valve, pressure control
Loading…
↗
20
9050116M1100
Spring, compression (688)
Loading…
↗
21
9048020M0500
Grommet (688)
Loading…
↗
22
6G511382A100
Gasket 2
Loading…
↗
23
6G511372001S
Cover, bypass 2
Loading…
↗
24
9011906MA200
Bolt, with washer
Loading…
↗
25
67H125760000
Hose 1
Loading…
↗
26
9046513M1800
Clamp
Loading…
↗
27
947020024700
Plug, spark (br8hs-10)
Loading…
↗
