225AETOL (1987)
Cylinder & Crankcase 2

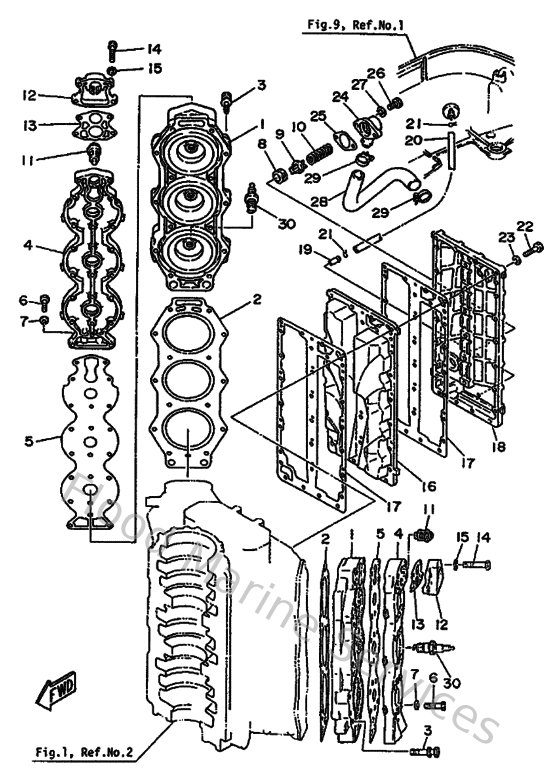

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
6K7111110094
Head, Cylinder 1
Loading…
↗
2
6G5111810100
Gasket, cylinder head 1
Loading…
↗
3
9011908M2100
Bolt, with washer(63v)
Loading…
↗
4
6G511191001S
Cover, cylinder head 1
Loading…
↗
5
6G5111930100
Gasket, head cover 1
Loading…
↗
6
973130603000
Bolt
Loading…
↗
7
929030660000
Washer, plain (646)
Loading…
↗
8
9048020M0500
Grommet (688)
Loading…
↗
9
6G5124160000
Valve, pressure control
Loading…
↗
10
9050116M1100
Spring, compression (688)
Loading…
↗
11
6E5124111000
Thermostat
Loading…
↗
12
6G512413009M
Cover, thermostat
Loading…
↗
13
68812414A100
Gasket, cover
Loading…
↗
14
973130604500
Bolt, hexagon
Loading…
↗
16
64D41111001S
Inner cover, exhaust
Loading…
↗
17
6G5411120000
Gasket, exhaust inner cover
Loading…
↗
18
6G541113009M
Outer cover, exhaust
Loading…
↗
19
6EEF43770000
Pipe, joint 2
Loading…
↗
20
6E5243120000
Pipe 2
Loading…
↗
21
904670800400
Clip, pipe 6162435600
Loading…
↗
22
973130603500
Bolt(3rv)
Loading…
↗
23
929900660000
Washer, plain (646)
Loading…
↗
24
6G511372009M
Cover, bypass 2
Loading…
↗
25
6G5113820000
Gasket 2
Loading…
↗
26
973130602000
Bolt(7u8)
Loading…
↗
28
6G5125760000
Hose 1
Loading…
↗
29
9046513M1800
Clamp
Loading…
↗
30
947020030900
Plug, spark (br9hs-10)
Loading…
↗
