225CETOL (1995)
Cylinder & Crankcase 2

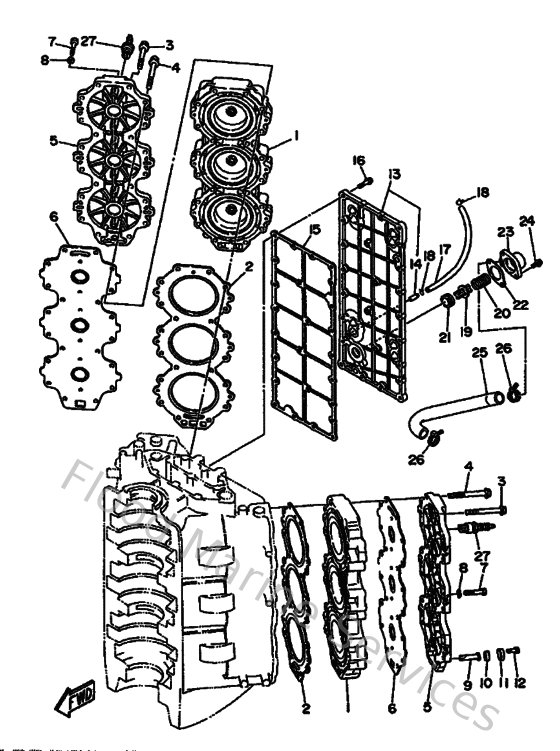

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
2
61A11181A000
Gasket, cylinder head 1
Loading…
↗
3
9011908M6100
Bolt (6f5)
Loading…
↗
4
9011908M9900
Bolt, with washer
Loading…
↗
5
61A11191009M
Cover, cylinder head 1
Loading…
↗
6
61A11193A000
Gasket, head cover 1
Loading…
↗
7
970140603500
Bolt(3rv)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
6J8113250000
Anode
Loading…
↗
10
6H3113280000
Grommet, anode
Loading…
↗
12
975130651600
Bolt, hexagon deep recess
Loading…
↗
13
61A41113009M
Outer cover, exhaust
Loading…
↗
14
6EEF43770000
Pipe, joint 2
Loading…
↗
15
61A41112A000
Gasket, exhaust inner cover
Loading…
↗
16
975130652500
Bolt, with washer(61b)
Loading…
↗
17
61A243120000
Pipe 2
Loading…
↗
18
904670800400
Clip, pipe 6162435600
Loading…
↗
19
6G5124160000
Valve, pressure control
Loading…
↗
20
9050116M1100
Spring, compression (688)
Loading…
↗
21
9048020M0500
Grommet (688)
Loading…
↗
22
6G511382A100
Gasket 2
Loading…
↗
23
6G511372005B
Cover, bypass 2
Loading…
↗
24
975130652000
Bolt, with washer(61b)
Loading…
↗
25
61A125760000
Hose 1
Loading…
↗
26
9046513M3600
Clamp(6h4)
Loading…
↗
27
947020024700
Plug, spark (br8hs-10)
Loading…
↗
