F4AMH (2000)
Cylinder & Crankcase 2

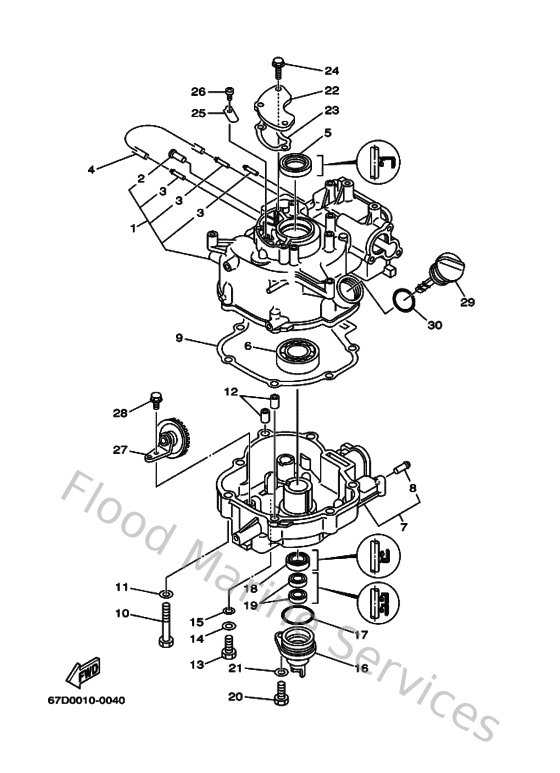

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
67D113110194
Cylinder 1
Loading…
↗
2
650243780000
Pipe, joint 2
Loading…
↗
3
6H1144850000
Pipe, joint
Loading…
↗
4
9044507MA300
Hose (l200)
Loading…
↗
5
931022509000
Oil seal (25x40x5-256)
Loading…
↗
6
93306205U800
Bearing (6k8)
Loading…
↗
7
67D151110194
Crankcase 1
Loading…
↗
8
6EEF43770000
Pipe, joint 2
Loading…
↗
9
67D11351A000
Gasket, cylinder
Loading…
↗
11
929950860000
Washer, plain (663)
Loading…
↗
12
995301011400
Pin, dowel(3vd)
Loading…
↗
13
970950802000
Bolt, hexagon
Loading…
↗
15
904300820900
Gasket(3gh)
Loading…
↗
16
6EEE539600CA
Housing, oil seal
Loading…
↗
17
932103553700
O-ring
Loading…
↗
18
931022010800
Oil seal
Loading…
↗
19
9310110M2500
Oil seal(6e0)
Loading…
↗
22
68DE11680000
Cover, Breather
Loading…
↗
23
67D11169A000
Gasket, Breather Cover
Loading…
↗
24
975950651400
Bolt(gj3)
Loading…
↗
25
6G8153460000
Breather 1
Loading…
↗
26
985030400600
Screw, pan head (7h3)
Loading…
↗
27
67D131020100
Gear unit assembly
Loading…
↗
28
958170601200
Bolt, flange
Loading…
↗
29
67D153620000
Plug, oil level
Loading…
↗
30
9321024M7900
O-ring
Loading…
↗
