F4AMH (2001)
Cylinder & Crankcase 2

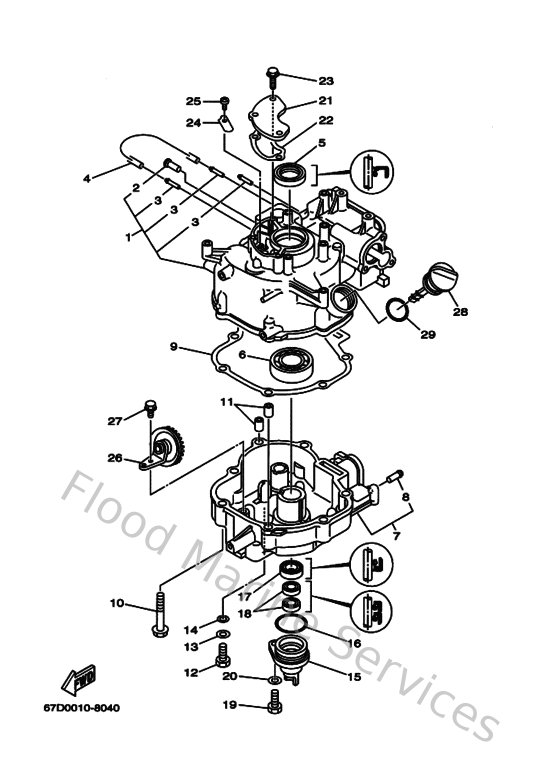

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
67DE13110094
Cylinder 1
Loading…
↗
2
650243780000
Pipe, joint 2
Loading…
↗
3
6H1144850000
Pipe, joint
Loading…
↗
4
9044507MA300
Hose (l200)
Loading…
↗
5
931022509000
Oil seal (25x40x5-256)
Loading…
↗
6
93306205YD00
Bearing (6k8)
Loading…
↗
7
68DE51110094
Crankcase 1
Loading…
↗
8
6EEF43770000
Pipe, joint 2
Loading…
↗
9
67D11351A000
Gasket, cylinder
Loading…
↗
10
975750855000
Bolt, with washer
Loading…
↗
11
995301011400
Pin, dowel(3vd)
Loading…
↗
12
970950802000
Bolt, hexagon
Loading…
↗
13
929950860000
Washer, plain (663)
Loading…
↗
14
904300820900
Gasket(3gh)
Loading…
↗
15
6EEE539600CA
Housing, oil seal
Loading…
↗
16
932103553700
O-ring
Loading…
↗
17
931022010800
Oil seal
Loading…
↗
18
9310110M2500
Oil seal(6e0)
Loading…
↗
21
68DE11680000
Cover, Breather
Loading…
↗
22
67D11169A000
Gasket, Breather Cover
Loading…
↗
23
975950651400
Bolt(gj3)
Loading…
↗
24
68DE53460000
Breather 1
Loading…
↗
25
985030400600
Screw, pan head (7h3)
Loading…
↗
26
68DE31020000
Gear unit assembly
Loading…
↗
27
958170601200
Bolt, flange
Loading…
↗
28
68DE53620000
Plug, oil level
Loading…
↗
29
9321024M7900
O-ring
Loading…
↗
