F50AE (1998)
Cylinder & Crankcase 2

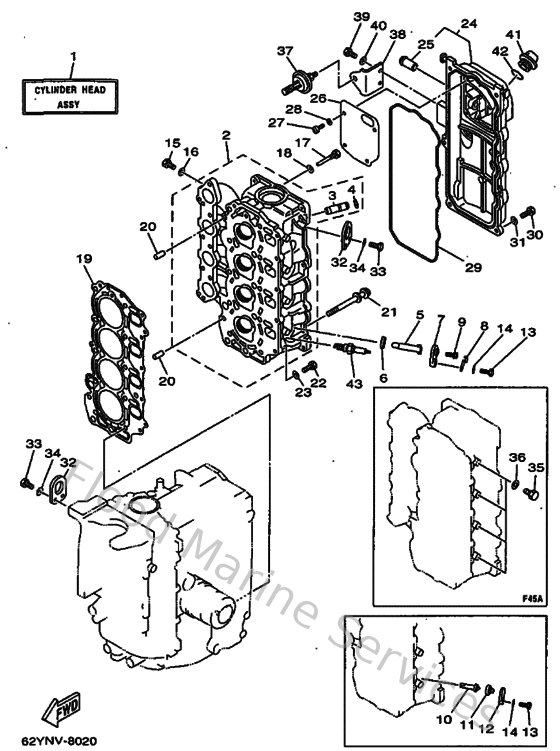

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
62YW009A124D
Cylinder Head Complete
Loading…
↗
2
62Y111111194
Head, Cylinder 1
Loading…
↗
3
62Y111331000
Guide, valve 1
Loading…
↗
4
9345009M0100
Circlip (6g8)
Loading…
↗
5
62Y113250000
Anode
Loading…
↗
6
66M113280000
Grommet, anode
Loading…
↗
7
66M113270094
Cover, anode
Loading…
↗
8
66M125350000
Plate
Loading…
↗
9
975950551200
Bolt, hexagon
Loading…
↗
10
6J8113250000
Anode
Loading…
↗
11
62Y113280000
Grommet, anode
Loading…
↗
12
6H3113270094
Cover, anode
Loading…
↗
13
970130602000
Bolt(62y)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
970950601000
Bolt
Loading…
↗
16
904300601400
Gasket 256113960000
Loading…
↗
17
9010906M6500
Bolt(62y)
Loading…
↗
19
62Y111810000
Gasket, cylinder head 1
Loading…
↗
20
995300801200
Pin, dowel(6g8)
Loading…
↗
21
9011909M0000
Bolt, with washer(62y)
Loading…
↗
22
970130602500
Bolt(62y)
Loading…
↗
24
62Y11191019M
Cover, cylinder head 1
Loading…
↗
25
62Y144850000
Pipe, joint
Loading…
↗
26
62Y111680000
Cover, breather
Loading…
↗
27
985070401000
Screw, pan head(6g8)
Loading…
↗
28
929070460000
Washer(jf2)
Loading…
↗
29
62Y113560000
Seal, cylinder 2
Loading…
↗
32
62Y111190000
Hanger, engine
Loading…
↗
33
970800602000
Bolt(7u8)
Loading…
↗
35
970950801400
Bolt, hexagon deep recess
Loading…
↗
36
904300814300
Gasket (256-11198-00)
Loading…
↗
37
62Y143680100
Diaphragm assembly 1
Loading…
↗
38
62Y144130000
Stay
Loading…
↗
39
970950601600
Bolt, hexagon deep recess
Loading…
↗
41
6G8153630000
Plug, oil
Loading…
↗
42
932102507000
O-ring (437)
Loading…
↗
43
947010037500
Plug, spark (dpr6ea-9)(62y)
Loading…
↗
