L150FETOL (2000)
Cylinder & Crankcase 2

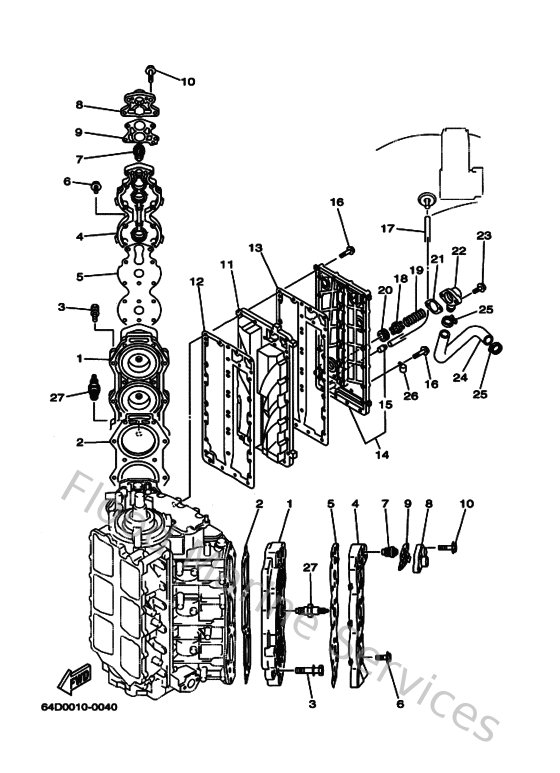

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
6G511111041S
Head, cylinder 1
Loading…
↗
2
6G511181A100
Gasket, cylinder head 1
Loading…
↗
3
9011908MA800
Bolt, with washer
Loading…
↗
4
6G511191001S
Cover, cylinder head 1
Loading…
↗
5
6G511193A000
Gasket, head cover 1
Loading…
↗
6
9011906MA400
Bolt, with washer
Loading…
↗
7
6E5124113000
Thermostat
Loading…
↗
8
68812413001S
Cover, thermostat
Loading…
↗
9
68812414A100
Gasket, cover
Loading…
↗
10
9011906MA600
Bolt, with washer
Loading…
↗
11
64D41111001S
Inner cover, exhaust
Loading…
↗
12
6G541112A100
Gasket, exhaust inner cover
Loading…
↗
14
6R341113001S
Outer cover, exhaust
Loading…
↗
15
652244610000
Pipe, joint
Loading…
↗
16
9011906MA500
Bolt, with washer
Loading…
↗
17
904450909700
Hose (l1500)
Loading…
↗
18
6G5124160000
Valve, pressure control
Loading…
↗
19
9050116M1100
Spring, compression (688)
Loading…
↗
20
9048020M0500
Grommet (688)
Loading…
↗
21
6G511382A100
Gasket 2
Loading…
↗
22
6G511372001S
Cover, bypass 2
Loading…
↗
23
9011906MA200
Bolt, with washer
Loading…
↗
24
6G5125760000
Hose 1
Loading…
↗
25
9046513M1800
Clamp
Loading…
↗
26
9046506M8600
Clamp
Loading…
↗
27
947020027100
Plug, spark (br7hs-10)
Loading…
↗
