S250AETOXLX (2000)
Cylinder & Crankcase 2

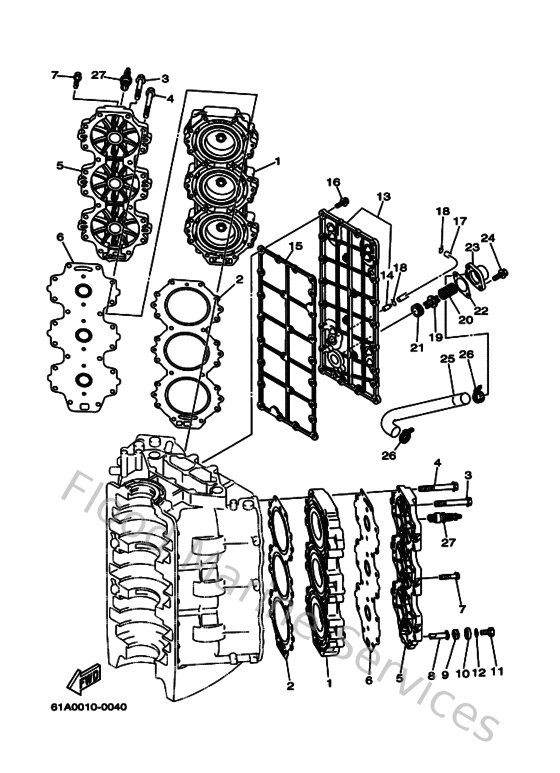

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
62J11111011S
Head, cylinder 1
Loading…
↗
2
61A11181A100
Gasket, cylinder head 1
Loading…
↗
3
9011908MA500
Bolt, with washer
Loading…
↗
4
9011908M9900
Bolt, with washer
Loading…
↗
5
61A11191001S
Cover, cylinder head 1
Loading…
↗
6
61A11193A100
Gasket, head cover 1
Loading…
↗
7
9011906MA500
Bolt, with washer
Loading…
↗
8
6J8113250000
Anode
Loading…
↗
9
6H3113280000
Grommet, anode
Loading…
↗
10
6H311327001S
Cover, anode
Loading…
↗
11
970130601600
Bolt, hexagon deep recess
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
61A41113001S
Outer cover, exhaust
Loading…
↗
14
6EEF43770000
Pipe, joint 2
Loading…
↗
15
61A41112A000
Gasket, exhaust inner cover
Loading…
↗
16
9011906MA300
Bolt, with washer
Loading…
↗
17
61A243120000
Pipe 2
Loading…
↗
18
904670800400
Clip, pipe 6162435600
Loading…
↗
19
6G5124160000
Valve, pressure control
Loading…
↗
20
9050116M1100
Spring, compression (688)
Loading…
↗
21
9048020M0500
Grommet (688)
Loading…
↗
22
6G511382A100
Gasket 2
Loading…
↗
23
6G511372001S
Cover, bypass 2
Loading…
↗
24
9011906MA200
Bolt, with washer
Loading…
↗
25
61A125760000
Hose 1
Loading…
↗
26
9046513M1800
Clamp
Loading…
↗
27
947020024700
Plug, spark (br8hs-10)
Loading…
↗
