Z150PETOL (2000)
Cylinder & Crankcase 2

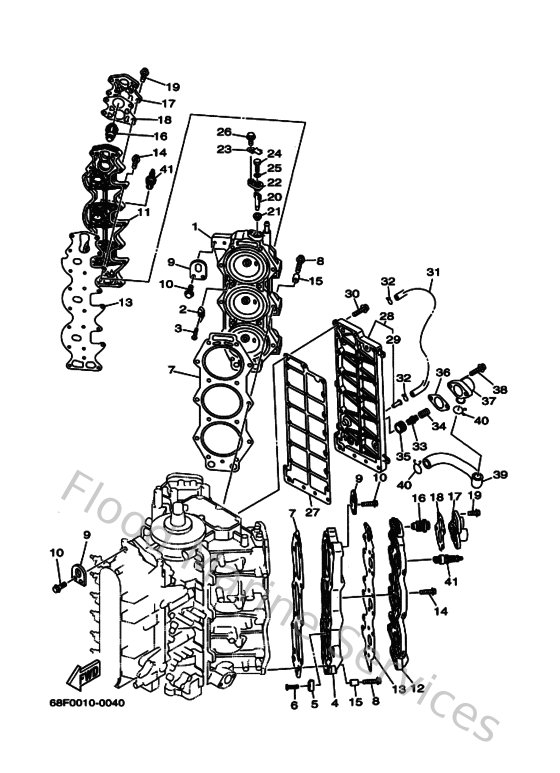

Diagram: Cylinder & Crankcase 2
Parts List
Reference
Description
Price
1
68F111110094
Head, cylinder 1
Loading…
↗
2
6E5113250000
Anode
Loading…
↗
3
987800401500
Screw, flat head(ga5)
Loading…
↗
4
68F11121001S
Head, cylinder 2
Loading…
↗
7
68F111810000
Gasket, cylinder head 1
Loading…
↗
8
9011908MA800
Bolt, with washer
Loading…
↗
9
68F111190000
Hanger, engine
Loading…
↗
10
9011906MA200
Bolt, with washer
Loading…
↗
11
68F11191001S
Cover, cylinder head 1
Loading…
↗
12
68F11192001S
Cover, cylinder head 2
Loading…
↗
13
68F111930100
Gasket, head cover 1
Loading…
↗
14
9011906MA400
Bolt, with washer
Loading…
↗
15
995901011400
Pin, dowel
Loading…
↗
16
6E5124113000
Thermostat
Loading…
↗
17
68812413001S
Cover, thermostat
Loading…
↗
18
68812414A100
Gasket, cover
Loading…
↗
19
9011906MA600
Bolt, with washer
Loading…
↗
20
62Y113250000
Anode
Loading…
↗
21
66M113280000
Grommet, anode
Loading…
↗
22
66M113270094
Cover, anode
Loading…
↗
23
66M125350000
Plate
Loading…
↗
24
970950501200
Bolt, hexagon
Loading…
↗
25
929950560000
Washer, plain (646)
Loading…
↗
27
68F411140000
Gasket, exhaust outer cover
Loading…
↗
28
68F41113191S
TOP COWLING assembly
Loading…
↗
29
650243780000
Pipe, joint 2
Loading…
↗
31
90445090F600
Hose (l1500)
Loading…
↗
32
9046708M1800
Clip
Loading…
↗
33
6G5124160000
Valve, pressure control
Loading…
↗
34
9050116M1100
Spring, compression (688)
Loading…
↗
35
9048020M0500
Grommet (688)
Loading…
↗
36
6G511382A100
Gasket 2
Loading…
↗
37
6G511372001S
Cover, bypass 2
Loading…
↗
39
68F125760000
Hose 1
Loading…
↗
40
9046723M1600
Clip
Loading…
↗
41
BKR6EKU10000
Plug, Spark (Bkr6E-Ku-10)
Loading…
↗
