3AMH (1996)
Cylinder. Crankcase

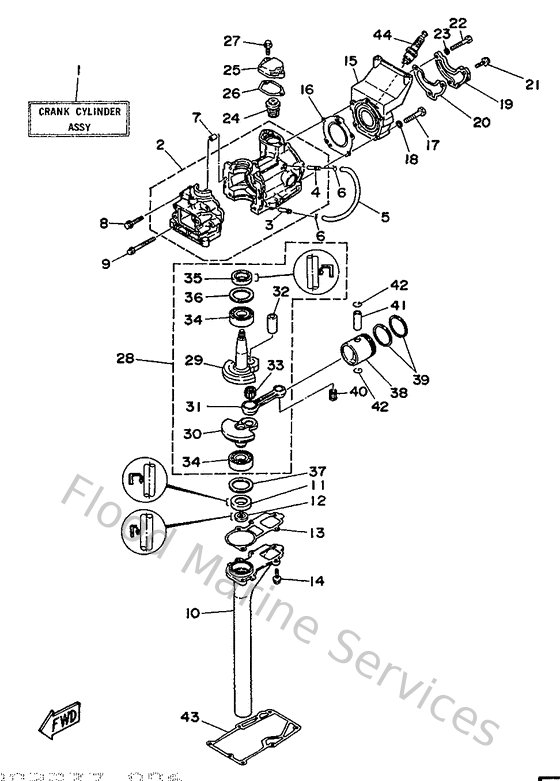

Diagram: Cylinder. Crankcase
Parts List
Reference
Description
Price
1
6L5W0090014D
Crank cylinder assembly
Loading…
↗
2
6L5151000094
Crankcase assembly
Loading…
↗
3
624144850000
Pipe, joint
Loading…
↗
4
6E5113720000
Nipple, hose
Loading…
↗
10
6L5153960000
Housing, oil seal
Loading…
↗
13
6L515369A000
Gasket, oil seal housing
Loading…
↗
15
6L5111110094
Head, cylinder 1
Loading…
↗
16
6L511181A200
Gasket, cylinder head 1
Loading…
↗
19
6L511181A100
Gasket, cylinder head 1
Loading…
↗
20
6L511193A100
Gasket, head cover
Loading…
↗
24
6E5124110200
Thermostat
Loading…
↗
25
6L512413009M
Cover, thermostat
Loading…
↗
26
6L512414A100
Gasket, cover
Loading…
↗
28
6L5114000000
Crankshaft assembly
Loading…
↗
29
6L5114120000
Crank 1
Loading…
↗
30
6L5114220000
Crank 2
Loading…
↗
31
6L5116510000
Rod, connecting
Loading…
↗
32
6L5116810000
Pin, crank 1
Loading…
↗
38
6L5116310096
Piston (std)
Loading…
↗
39
6L5116100000
Piston ring set (std)
Loading…
↗
41
6L5116330000
Pin, piston
Loading…
↗
43
6L545113A100
Gasket, upper casing
Loading…
↗
