40XMH (2001)
Cylinder. Crankcase

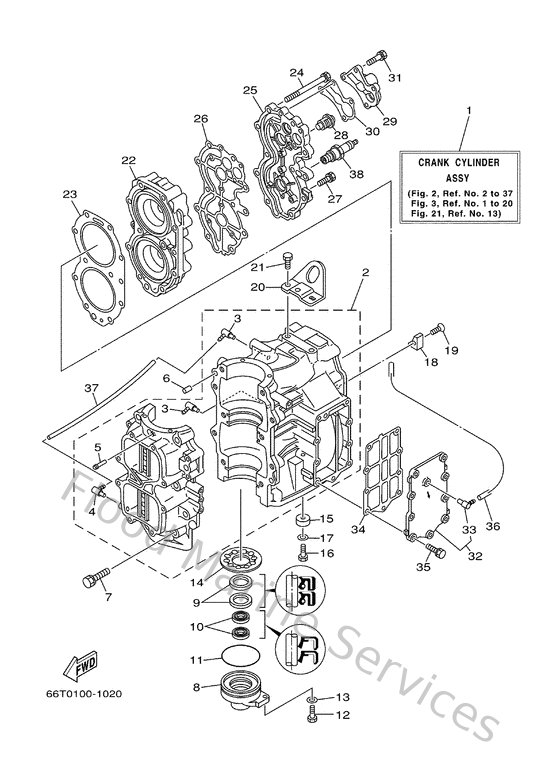

Diagram: Cylinder. Crankcase
Parts List
Reference
Description
Price
1
66TW0090024D
Crank cylinder assembly
Loading…
↗
2
66T151000294
Crankcase assembly
Loading…
↗
3
6E5135520000
Nozzle
Loading…
↗
4
6E5135520100
Nozzle
Loading…
↗
5
624144850000
Pipe, joint
Loading…
↗
6
936081206300
Pin, dowel (626)
Loading…
↗
7
901191000500
Bolt, with washer
Loading…
↗
8
66T153960194
Housing, oil seal
Loading…
↗
9
9310230M5600
Oil seal
Loading…
↗
10
931011600100
Oil seal
Loading…
↗
11
9321065M5000
O-ring
Loading…
↗
12
970950602000
Bolt(7u8)
Loading…
↗
13
929950660000
Washer, plain (646)
Loading…
↗
14
66T115650000
Washer, bearing cover
Loading…
↗
15
676452510000
Anode
Loading…
↗
16
970800602000
Bolt(7u8)
Loading…
↗
18
676113250000
Anode
Loading…
↗
19
9014106M0000
Screw, countersunk
Loading…
↗
20
66T111190000
Hanger, engine
Loading…
↗
21
901010800200
Bolt
Loading…
↗
22
66T111110194
Head, cylinder 1
Loading…
↗
23
66T11181A200
Gasket, cylinder head 1
Loading…
↗
24
9011908MA500
Bolt, with washer
Loading…
↗
25
66T11191009M
Cover, Cylinder Head 1
Loading…
↗
26
66T11193A300
Gasket, head cover 1
Loading…
↗
27
9011906MA300
Bolt, with washer
Loading…
↗
28
6E5124110100
Thermostat
Loading…
↗
29
67612413009M
Cover, thermostat
Loading…
↗
30
67612414A100
Gasket, cover
Loading…
↗
31
9011906MA500
Bolt, with washer
Loading…
↗
32
66T41113009M
Outer Cover, Exhaust
Loading…
↗
33
676113720000
Nipple, hose
Loading…
↗
34
66T41114A000
Gasket, exhaust outer cover
Loading…
↗
36
90445092K100
Hose (l420)
Loading…
↗
37
9044507M0800
Hose (l390)
Loading…
↗
38
947020004000
Plug, spark (b7hs)
Loading…
↗
