75AE (2001)
Cylinder. Crankcase

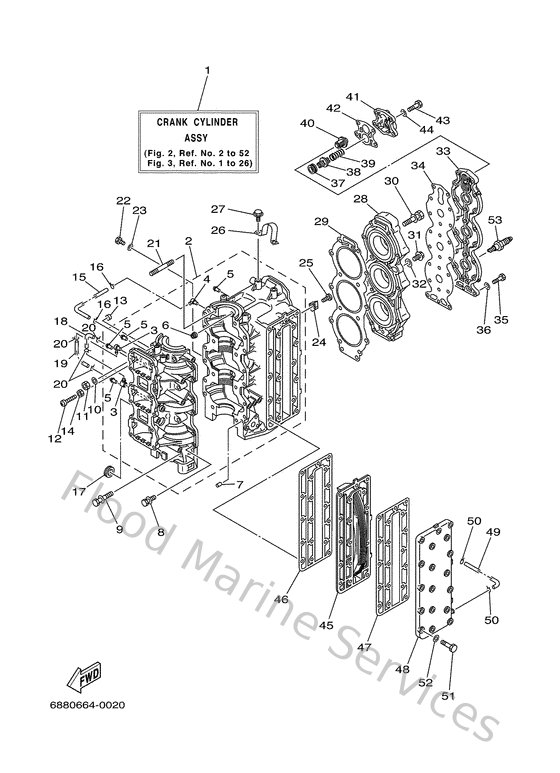

Diagram: Cylinder. Crankcase
Parts List
Reference
Description
Price
1
692W0090424D
Crank cylinder assembly
Loading…
↗
2
688151000594
Crankcase assembly
Loading…
↗
3
688113700100
Check valve assembly
Loading…
↗
4
650113700000
Check valve assembly
Loading…
↗
5
624144850000
Pipe, joint
Loading…
↗
6
663115180100
Lock, bearing
Loading…
↗
7
936081206300
Pin, dowel (626)
Loading…
↗
8
9011906M1200
Bolt, with washer (697)
Loading…
↗
9
9011910M0700
Bolt (6f5)
Loading…
↗
10
902011043000
Washer (7a9)
Loading…
↗
11
953141060000
Nut(3bm)
Loading…
↗
12
901570601400
Screw, pan head(697)
Loading…
↗
13
688441940000
Cap
Loading…
↗
14
953800670000
Nut
Loading…
↗
15
904450726000
Hose (l390)
Loading…
↗
16
904670601600
Clip (655)
Loading…
↗
17
9048024M0400
Grommet (688)
Loading…
↗
18
9044507MA300
Hose (l200)
Loading…
↗
19
9044507M2300
Hose (l570)
Loading…
↗
21
9011610M0600
Bolt, stud (688)
Loading…
↗
22
970950601200
Bolt(gh1)
Loading…
↗
23
929950610000
Washer(6a1)
Loading…
↗
24
688113250000
Anode
Loading…
↗
25
987800401400
Screw, flat head(ga5)
Loading…
↗
26
688111190000
Hanger, engine
Loading…
↗
27
9011908MA300
Bolt, with washer
Loading…
↗
28
68811111021S
Head, cylinder 1
Loading…
↗
29
68811181A100
Gasket, cylinder head 1
Loading…
↗
30
9011908M6500
Bolt, with washer
Loading…
↗
31
9034014M0600
Plug, straight screw(62y)
Loading…
↗
32
904301411500
Gasket (663)
Loading…
↗
33
68811191009M
Cover, cylinder head 1
Loading…
↗
34
68811193A100
Gasket, head cover 1
Loading…
↗
35
970130602500
Bolt(62y)
Loading…
↗
36
929030660000
Washer, plain (646)
Loading…
↗
37
9048020M0500
Grommet (688)
Loading…
↗
38
688124160000
Valve, pressure control
Loading…
↗
39
9050116M1100
Spring, compression (688)
Loading…
↗
40
6E5124113000
Thermostat
Loading…
↗
41
68812413009M
Cover, thermostat
Loading…
↗
42
68812414A100
Gasket, cover
Loading…
↗
43
970130603500
Bolt(3rv)
Loading…
↗
45
68841111001S
Inner cover, exhaust
Loading…
↗
46
68841112A000
Gasket, exhaust inner cover
Loading…
↗
47
68841114A000
Gasket, exhaust outer cover
Loading…
↗
48
68841113009M
Outer cover, exhaust
Loading…
↗
49
6H4243110000
Pipe 1
Loading…
↗
50
904670800400
Clip, pipe 6162435600
Loading…
↗
51
970130804000
Bolt, Hexagon
Loading…
↗
52
929030860000
Washer, plain (663)
Loading…
↗
53
947020024700
Plug, spark (br8hs-10)
Loading…
↗
