L225FETO (1998)
Cylinder. Crankcase 1

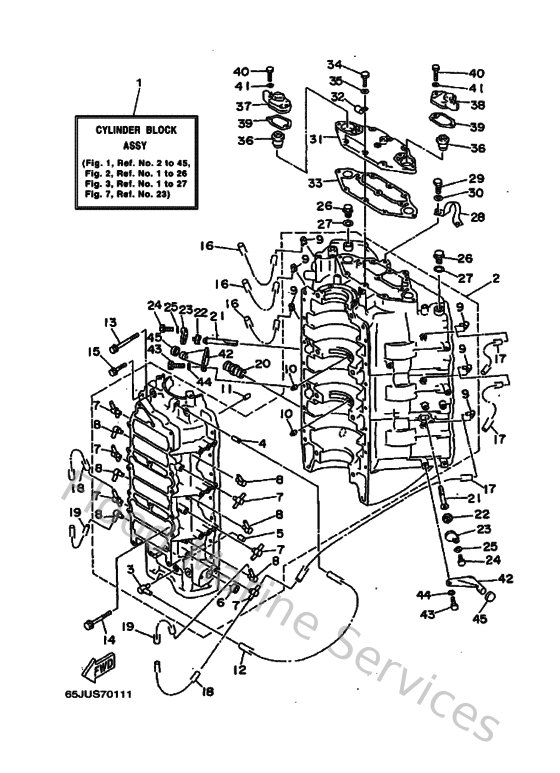

Diagram: Cylinder. Crankcase 1
Parts List
Reference
Description
Price
1
65LW0090104D
Crank Cylinder Assembly
Loading…
↗
2
65J151000094
Crankcase Assembly
Loading…
↗
3
6E5113720100
Nipple, hose
Loading…
↗
4
624144850000
Pipe, joint
Loading…
↗
5
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
6
9038316M0100
Bush, formed(61a)
Loading…
↗
7
6F6113720000
Nipple, hose
Loading…
↗
8
650113720000
Nipple, hose
Loading…
↗
10
663115180100
Lock, bearing
Loading…
↗
11
936081206300
Pin, dowel (626)
Loading…
↗
12
9044507M1100
Hose (l770)
Loading…
↗
13
9010510M6200
Bolt, washer based(61a)
Loading…
↗
14
9010510M7500
Bolt, washer based(65j)
Loading…
↗
15
9011906M1300
Bolt, with washer (682)
Loading…
↗
16
9044507M9000
Hose (l390)
Loading…
↗
17
9044507M4000
Hose (l390)
Loading…
↗
18
9044507MA600
Hose (l200)
Loading…
↗
19
9044507MA300
Hose (l200)
Loading…
↗
20
6G5125810000
Joint, hose
Loading…
↗
21
61A113250000
Anode
Loading…
↗
22
6H3113280000
Grommet, anode
Loading…
↗
23
6H3113270094
Cover, anode
Loading…
↗
24
970140601600
Bolt, hexagon deep recess
Loading…
↗
25
929900660000
Washer, plain (646)
Loading…
↗
26
9034014M0600
Plug, straight screw(62y)
Loading…
↗
27
904301411500
Gasket (663)
Loading…
↗
28
6E5111190000
Hanger, Engine
Loading…
↗
29
970800802000
Bolt(6td)
Loading…
↗
30
929900860000
Washer, plain (663)
Loading…
↗
31
61A11371009M
Cover
Loading…
↗
32
9046508M0700
Clamp (1e6)
Loading…
↗
33
61A11381A000
Gasket 1
Loading…
↗
34
970130602000
Bolt(62y)
Loading…
↗
36
6E5124112000
Thermostat
Loading…
↗
37
61A12413009M
Cover, thermostat
Loading…
↗
38
61A12413109M
Cover, thermostat
Loading…
↗
39
61A12414A000
Gasket, cover
Loading…
↗
40
970140603500
Bolt(3rv)
Loading…
↗
41
929030660000
Washer, plain (646)
Loading…
↗
42
6E5427610094
Stopper
Loading…
↗
45
663445330000
Damper, upper mount
Loading…
↗
