Digital Network Control (2010)
DBW REMOTE CONTROL 1 (SINGLE)

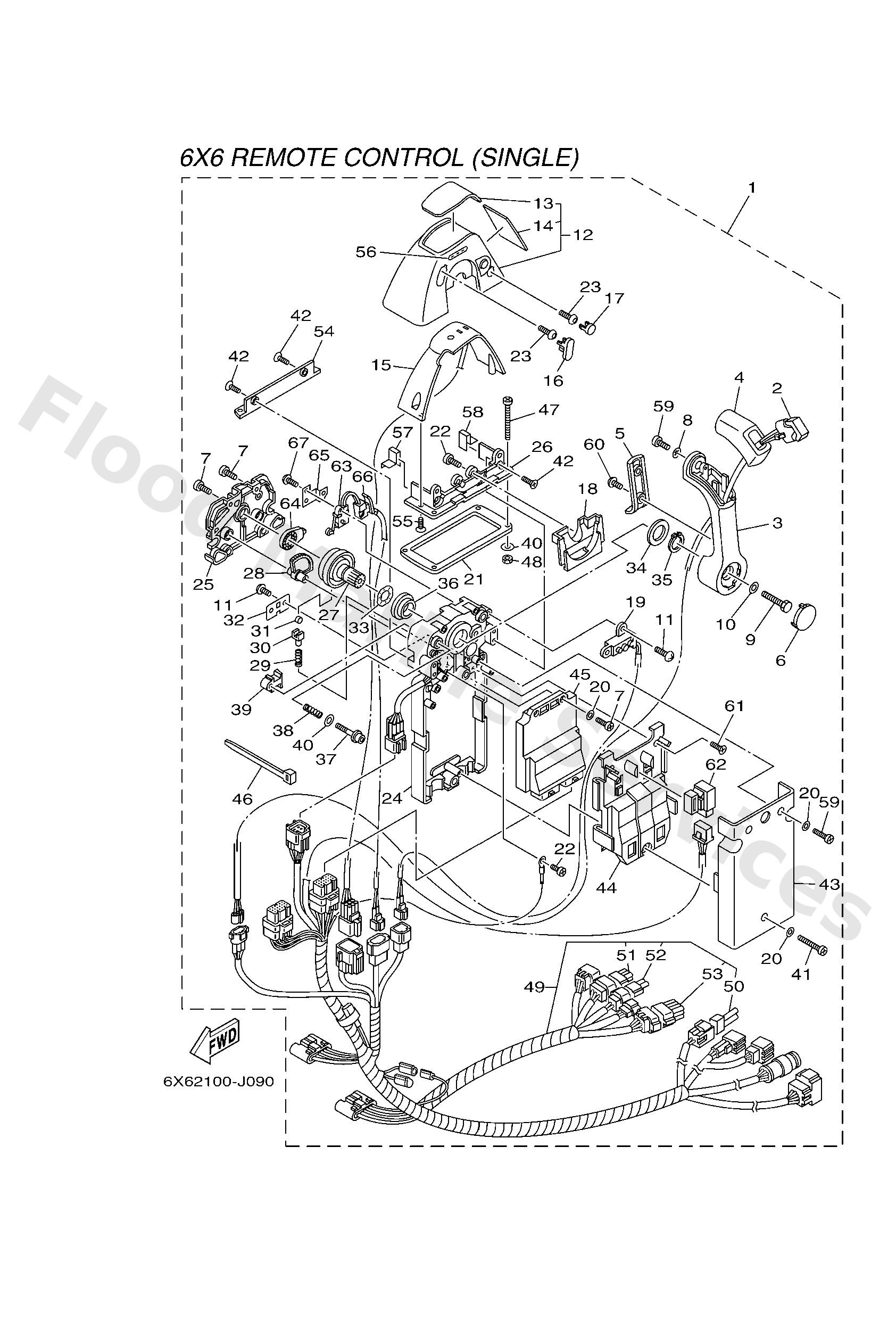

Diagram: DBW REMOTE CONTROL 1 (SINGLE)
Parts List
Reference
Description
Price
1
6X64820540
NOT FOR SALE
Remote Control assembly (Single)
Loading…
↗
1
6X64820530
NOT FOR SALE
Remote Control assembly (Single)
Loading…
↗
1
6X64820550
NOT FOR SALE
Remote Control assembly (Single)
Loading…
↗
2
6X68256300
Trim & tilt switch assembly
Loading…
↗
3
6X64822100
Lever, control
Loading…
↗
4
6X64822200
Grip, control lever
Loading…
↗
5
6X64822400
Cover, control lever
Loading…
↗
6
6X64822410
Cover, control lever
Loading…
↗
7
9858005014
Screw, pan head(3yl)
Loading…
↗
8
9299005300
Washer, tooth
Loading…
↗
9
6X64817100
Bolt
Loading…
↗
10
9299008600
Washer, plain (663)
Loading…
↗
11
EL84812700
Screw 1
Loading…
↗
12
6X64811904
Cover
Loading…
↗
13
6X64821530
Graphic
Loading…
↗
14
6X64821600
Graphic
Loading…
↗
15
6X68430100
Pilot light assembly 1
Loading…
↗
16
6X64816700
Plug
Loading…
↗
17
6X64816750
Plug
Loading…
↗
18
6X64821900
Cover, lead
Loading…
↗
19
6X68259E00
Switch assembly
Loading…
↗
20
9299005200
Ybs66-5 washer, plain
Loading…
↗
21
6X64817600
Grommet
Loading…
↗
22
9858004010
Screw, pan head (e56)
Loading…
↗
23
92D8005016
Bolt, socket head
Loading…
↗
24
6X6481A001
Remo-Con. Case assembly
Loading…
↗
25
6X64821200
Back plate 1
Loading…
↗
26
6X64814410
Plate, stopper 2
Loading…
↗
27
6X64824201
Shaft, drive
Loading…
↗
28
6X64823301
Gear 2
Loading…
↗
29
6X64823800
Spring, detent
Loading…
↗
30
6X64823700
Adaptor
Loading…
↗
31
6X64823600
Roller, detent
Loading…
↗
32
6X64818900
Retainer
Loading…
↗
33
7034819800
Washer, wave 3
Loading…
↗
34
6X64819300
Washer 3
Loading…
↗
35
6X64811800
Clip, shift lever
Loading…
↗
36
6X64823400
Bushing 1
Loading…
↗
37
6X64826700
Bolt set
Loading…
↗
38
6X64815800
Spring 1
Loading…
↗
39
6X64826400
Friction, throttle
Loading…
↗
40
7044828700
Washer 1
Loading…
↗
41
6X68114500
Screw 1
Loading…
↗
42
9878005014
Screw 3
Loading…
↗
43
6X64821300
Back plate 2
Loading…
↗
44
6X64822800
Holder, switch
Loading…
↗
45
6X68559020
Control unit assembly
Loading…
↗
46
7038259100
Band
Loading…
↗
47
9778050145
UR
Screw, pan head tapping
Loading…
↗
47
9858005060
UR
Screw, panhead
Loading…
↗
48
9538005600
Nut, hexagon (663)
Loading…
↗
49
6X682590G0
FOR 6X6-48205-30
-
Loading…
↗
49
6X682590A0
FOR 6X6-48205-40
Wire harness assembly
Loading…
↗
49
6X682590D0
FOR 6X6-48205-50
-
Loading…
↗
50
6X68258520
Cap 2 (2p)
Loading…
↗
51
6X68258260
FOR 6X6-82590-A0
Cap 1 (6p)
Loading…
↗
52
6X68258240
FOR 6X6-82590-A0
Cap 1 (4p)
Loading…
↗
53
6X682582B0
FOR 6X6-82590-A0
Cap 1 (12P)
Loading…
↗
54
6X64814400
Plate, stopper 2
Loading…
↗
55
6X64812900
Screw 3
Loading…
↗
56
6X64419100
Indicator, shift
Loading…
↗
57
6X64817650
Grommet
Loading…
↗
58
6X64817660
Grommet
Loading…
↗
59
6X64812700
Screw 1
Loading…
↗
60
6X64812800
Screw 2
Loading…
↗
61
6X68114600
Screw 2
Loading…
↗
62
7048195010
Relay assembly
Loading…
↗
63
6X68254000
Neutral switch assembly
Loading…
↗
64
6X64824100
Arm, drive
Loading…
↗
65
6X64824501
Plate, lock
Loading…
↗
66
6X68254500
Grommet
Loading…
↗
67
6X68252V00
Screw, special
Loading…
↗
