Rigging - Remote Control (2010)
DBW REMOTE CONTROL 3 (TRIPLE)

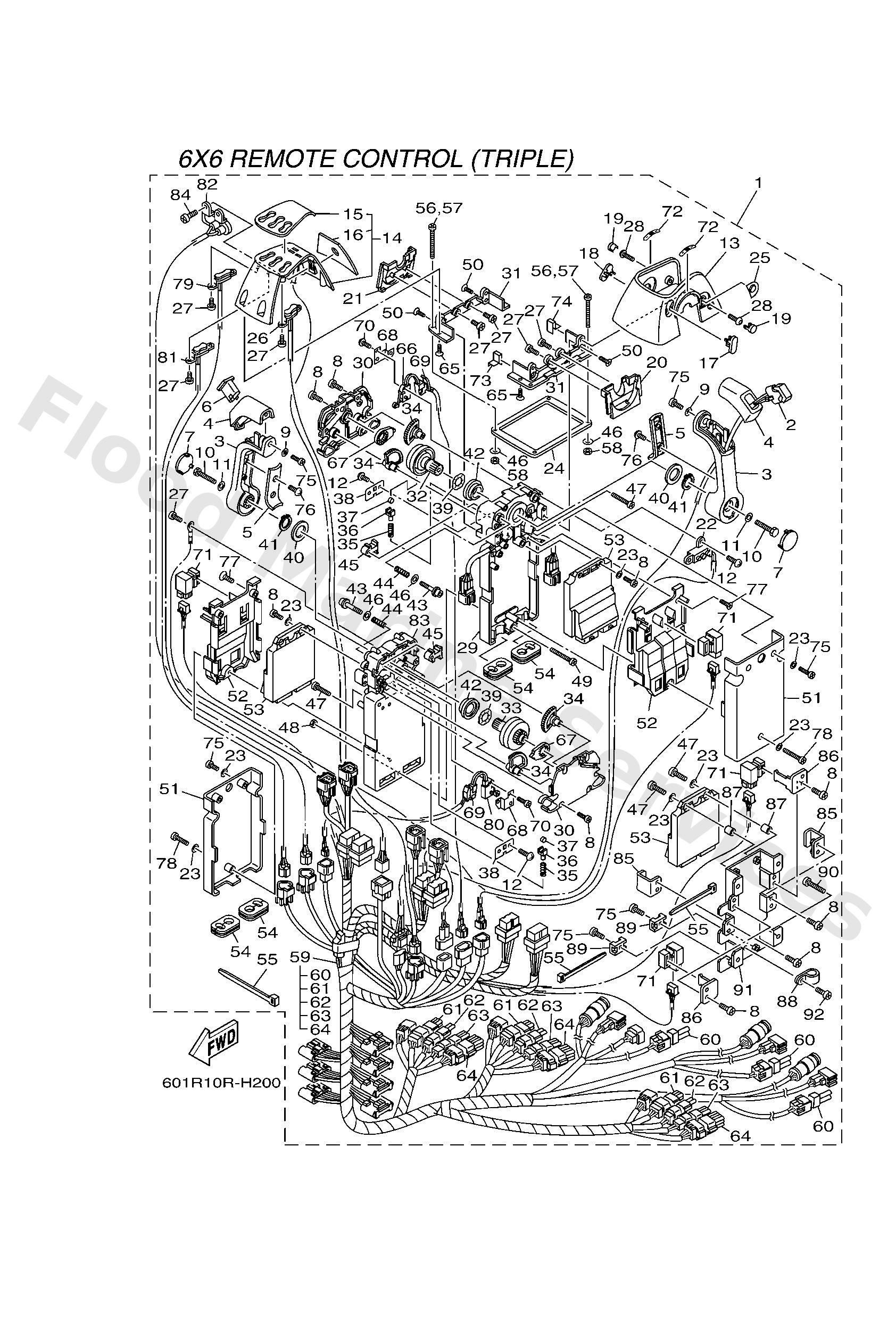

Diagram: DBW REMOTE CONTROL 3 (TRIPLE)
Parts List
Reference
Description
Price
1
6X64820830
NOT FOR SALE
-
Loading…
↗
1
6X64820820
NOT FOR SALE
-
Loading…
↗
2
6X68256300
Trim & tilt switch assembly
Loading…
↗
3
6X64822100
Lever, control
Loading…
↗
4
6X64822200
Grip, control lever
Loading…
↗
5
6X64822400
Cover, control lever
Loading…
↗
6
6X64822210
Grip, control lever
Loading…
↗
7
6X64822410
Cover, control lever
Loading…
↗
8
9858005014
Screw, pan head(3yl)
Loading…
↗
9
9299005300
Washer, tooth
Loading…
↗
10
6X64817100
Bolt
Loading…
↗
11
9299008600
Washer, plain (663)
Loading…
↗
12
EL84812700
Screw 1
Loading…
↗
13
6X64811910
Cover
Loading…
↗
14
6X68430122
Pilot light assembly 1
Loading…
↗
15
6X64821520
Graphic
Loading…
↗
16
6X64821620
Graphic
Loading…
↗
17
6X64816710
Plug
Loading…
↗
18
6X64816720
Plug
Loading…
↗
19
6X64816760
Plug
Loading…
↗
20
6X64821910
Cover, lead
Loading…
↗
21
6X64821920
Cover, lead
Loading…
↗
22
6X68259E00
Switch assembly
Loading…
↗
23
9299005200
Ybs66-5 washer, plain
Loading…
↗
24
6X64817610
Grommet
Loading…
↗
25
6X64822500
Cover
Loading…
↗
26
6X68256310
Trim & tilt switch assembly
Loading…
↗
27
9858004010
Screw, pan head (e56)
Loading…
↗
28
92D8005016
Bolt, socket head
Loading…
↗
29
6X6481A011
Remo-Con. Case assembly
Loading…
↗
30
6X64821200
Back plate 1
Loading…
↗
31
6X64814410
Plate, stopper 2
Loading…
↗
32
6X64824201
Shaft, drive
Loading…
↗
33
6X64824211
Shaft, drive
Loading…
↗
34
6X64823301
Gear 2
Loading…
↗
35
6X64823800
Spring, detent
Loading…
↗
36
6X64823700
Adaptor
Loading…
↗
37
6X64823600
Roller, detent
Loading…
↗
38
6X64818900
Retainer
Loading…
↗
39
7034819800
Washer, wave 3
Loading…
↗
40
6X64819300
Washer 3
Loading…
↗
41
6X64811800
Clip, shift lever
Loading…
↗
42
6X64823400
Bushing 1
Loading…
↗
43
6X64826700
Bolt set
Loading…
↗
44
6X64815800
Spring 1
Loading…
↗
45
6X64826400
Friction, throttle
Loading…
↗
46
7044828700
Washer 1
Loading…
↗
47
9858005025
Screw, panhead (a93)
Loading…
↗
48
7044815600
Nut 1
Loading…
↗
49
7044828300
Screw,panhead (eg9)
Loading…
↗
50
9878005014
Screw 3
Loading…
↗
51
6X64821300
Back plate 2
Loading…
↗
52
6X64822800
Holder, switch
Loading…
↗
53
6X68559000
Control unit assembly
Loading…
↗
54
6X64817500
Boot
Loading…
↗
55
7038259100
Band
Loading…
↗
56
9778050145
Screw, pan head tapping
Loading…
↗
57
9858005060
Screw, panhead
Loading…
↗
58
9538005600
Nut, hexagon (663)
Loading…
↗
59
6X68259080
STATION MAIN
-
Loading…
↗
59
6X68259090
STATION SUB
-
Loading…
↗
60
6X68258520
Cap 2 (2p)
Loading…
↗
61
6X68258260
FOR 6X6-82590-80
Cap 1 (6p)
Loading…
↗
62
6X68258240
FOR 6X6-82590-80
Cap 1 (4p)
Loading…
↗
63
6X68258230
FOR 6X6-82590-80
Cap 1 (3P)
Loading…
↗
64
6X682582B0
FOR 6X6-82590-80
Cap 1 (12P)
Loading…
↗
65
6X64812900
Screw 3
Loading…
↗
66
6X68254000
Neutral switch assembly
Loading…
↗
67
6X64824100
Arm, drive
Loading…
↗
68
6X64824501
Plate, lock
Loading…
↗
69
6X68254500
Grommet
Loading…
↗
70
6X68252V00
Screw, special
Loading…
↗
71
7048195010
Relay assembly
Loading…
↗
72
6X64419100
Indicator, shift
Loading…
↗
73
6X64817650
Grommet
Loading…
↗
74
6X64817660
Grommet
Loading…
↗
75
6X64812700
Screw 1
Loading…
↗
76
6X64812800
Screw 2
Loading…
↗
77
6X68114600
Screw 2
Loading…
↗
78
6X68114500
Screw 1
Loading…
↗
79
6X68256320
Trim & tilt switch assembly
Loading…
↗
80
6X68254010
Neutral switch assembly
Loading…
↗
81
6X68256330
Trim & tilt switch assembly
Loading…
↗
82
6X68259F00
Switch assembly
Loading…
↗
83
6X6481A031
Remo-Con. Case assembly
Loading…
↗
84
9878005010
Screw, flat head (716)
Loading…
↗
85
6X68555700
Holder
Loading…
↗
86
6X68259100
Band
Loading…
↗
87
6X68252S00
Spacer, 1
Loading…
↗
88
6X68258400
Clamp
Loading…
↗
89
6X68258100
Stay, cord clamp
Loading…
↗
90
6X04812800
Screw 2
Loading…
↗
91
6X64821110
Housing,1
Loading…
↗
92
6X74812700
Screw 1
Loading…
↗
