Digital Network Control (2010)
DBW REMOTE CONTROL 6 (6X7)

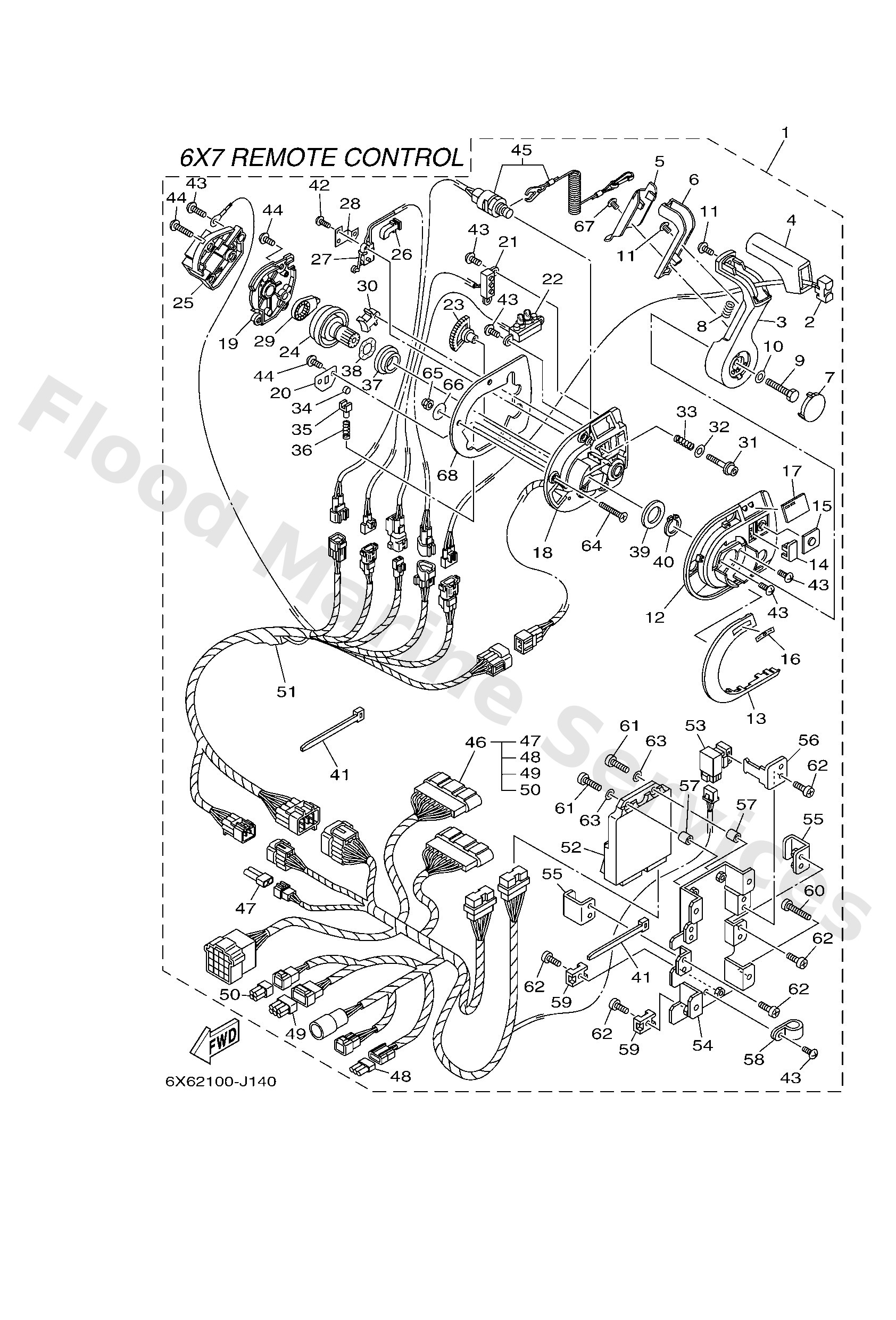

Diagram: DBW REMOTE CONTROL 6 (6X7)
Parts List
Reference
Description
Price
1
6X74820610
NOT FOR SALE
6x7 dbw flush mount sgl stn
Loading…
↗
2
6X78256300
Trim & tilt switch assembly
Loading…
↗
3
6X74822100
Lever, control
Loading…
↗
4
6X74822200
Grip, control lever
Loading…
↗
5
6X74822400
Cover, control lever
Loading…
↗
6
6X74822300
Lock, neutral
Loading…
↗
7
6X74822410
Cover, control lever
Loading…
↗
8
7034822700
Spring, neutral lock
Loading…
↗
9
6X64817100
Bolt
Loading…
↗
10
9299008600
Washer, plain (663)
Loading…
↗
11
6X64812800
Screw 2
Loading…
↗
12
6X74811900
Cover
Loading…
↗
13
6X74816710
Plug
Loading…
↗
14
6X74816700
Plug
Loading…
↗
15
6X74822500
Cover
Loading…
↗
16
6X74419100
Indicator, shift
Loading…
↗
17
6X74821510
Graphic
Loading…
↗
18
6X7481A001
Remo-con. case assembly
Loading…
↗
19
6X74821200
Back plate 1
Loading…
↗
20
6X74818900
Retainer
Loading…
↗
21
6X78259E00
Switch assembly
Loading…
↗
22
6X78430100
Pilot light assembly 1
Loading…
↗
23
6X74823300
Gear 2
Loading…
↗
24
6X74824200
Shaft, drive
Loading…
↗
25
6X74822800
Holder, switch
Loading…
↗
26
6X78254500
Grommet
Loading…
↗
27
6X68254000
Neutral switch assembly
Loading…
↗
28
6X64824501
Plate, lock
Loading…
↗
29
6X64824100
Arm, drive
Loading…
↗
30
6X64826400
Friction, throttle
Loading…
↗
31
6X64826700
Bolt set
Loading…
↗
32
7044828700
Washer 1
Loading…
↗
33
6X64815800
Spring 1
Loading…
↗
34
6X64823600
Roller, detent
Loading…
↗
35
6X64823700
Adaptor
Loading…
↗
36
6X64823800
Spring, detent
Loading…
↗
37
6X64823400
Bushing 1
Loading…
↗
38
7034819800
Washer, wave 3
Loading…
↗
39
6X64819300
Washer 3
Loading…
↗
40
6X64811800
Clip, shift lever
Loading…
↗
41
7038259100
Band
Loading…
↗
42
6X68252V00
Screw, special
Loading…
↗
43
6X74812700
Screw 1
Loading…
↗
44
EL84812700
Screw 1
Loading…
↗
45
6X78257500
Engine stop switch assembly
Loading…
↗
46
6X78259040
Wire harness assembly
Loading…
↗
47
6X68258520
Cap 2 (2p)
Loading…
↗
48
6X682582A0
Cap 1 (3p)
Loading…
↗
49
6X68258560
Cap 2 (6p)
Loading…
↗
50
6X68258540
Cap 2 (4p)
Loading…
↗
51
6X78259020
Wire harness assembly
Loading…
↗
52
6X68559020
Control unit assembly
Loading…
↗
53
7048195010
Relay assembly
Loading…
↗
54
6X64821110
Housing,1
Loading…
↗
55
6X68555700
Holder
Loading…
↗
56
6X68259100
Band
Loading…
↗
57
6X68252S00
Spacer, 1
Loading…
↗
58
6X68258400
Clamp
Loading…
↗
59
6X68258100
Stay, cord clamp
Loading…
↗
60
6X04812800
Screw 2
Loading…
↗
61
9858005025
Screw, panhead (a93)
Loading…
↗
62
9858005014
Screw, pan head(3yl)
Loading…
↗
63
9299005200
Ybs66-5 washer, plain
Loading…
↗
64
9878006035
UR
Screw flat head
Loading…
↗
64
9778006230
UR
Screw, tapping
Loading…
↗
65
6X04815600
Nut 1
Loading…
↗
66
7014828700
Washer 1
Loading…
↗
67
6X74812800
Screw 2
Loading…
↗
68
6X74817610
Grommet
Loading…
↗
