Rigging - Remote Control (2018)
DBW REMOTE CONTROL 6 (QUAD)

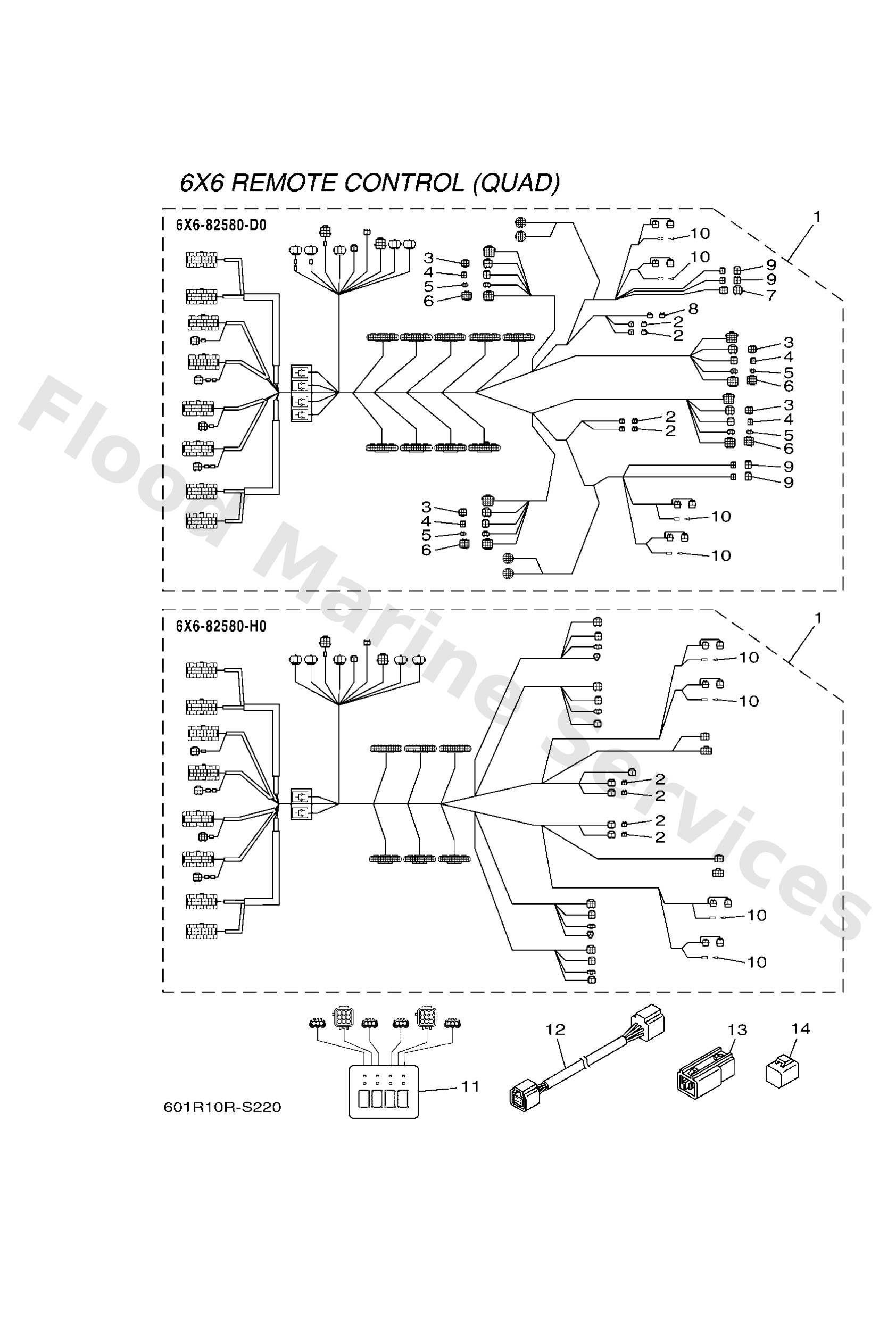

Diagram: DBW REMOTE CONTROL 6 (QUAD)
Parts List
Reference
Description
Price
1
6X682580H0
FOR 6X6-48209-31
Wire harness assembly 2
Loading…
↗
1
6X682580D0
FOR 6X6-48209-21
Wire harness assembly 2
Loading…
↗
2
6X68258520
Cap 2 (2p)
Loading…
↗
3
6X68258260
FOR 6X6-82580-D0
Cap 1 (6p)
Loading…
↗
4
6X68258240
FOR 6X6-82580-D0
Cap 1 (4p)
Loading…
↗
5
6X682582A0
FOR 6X6-82580-D0
Cap 1 (3p)
Loading…
↗
6
6X682582C0
FOR 6X6-82580-D0
Cap 1 (12p)
Loading…
↗
7
6X68258570
FOR 6X6-82580-D0
Cap 2 (6p)
Loading…
↗
8
6X68257Y00
FOR 6X6-82580-D0
Cap
Loading…
↗
9
6Y88258211
FOR 6X6-82580-D0
White cap 1 (4pin)
Loading…
↗
10
7038211900
Cover, lead wire
Loading…
↗
11
6X682570N1
Panel switch assembly
Loading…
↗
12
6Y88255350
FOR 6X6-48209-21
Main bus wire 3.0m-10ft
Loading…
↗
13
6Y88192011
FOR 6X6-48209-21
Single-hub
Loading…
↗
