Helm Master EX (2020)
DEC 6 (QUAD/MAIN ST)

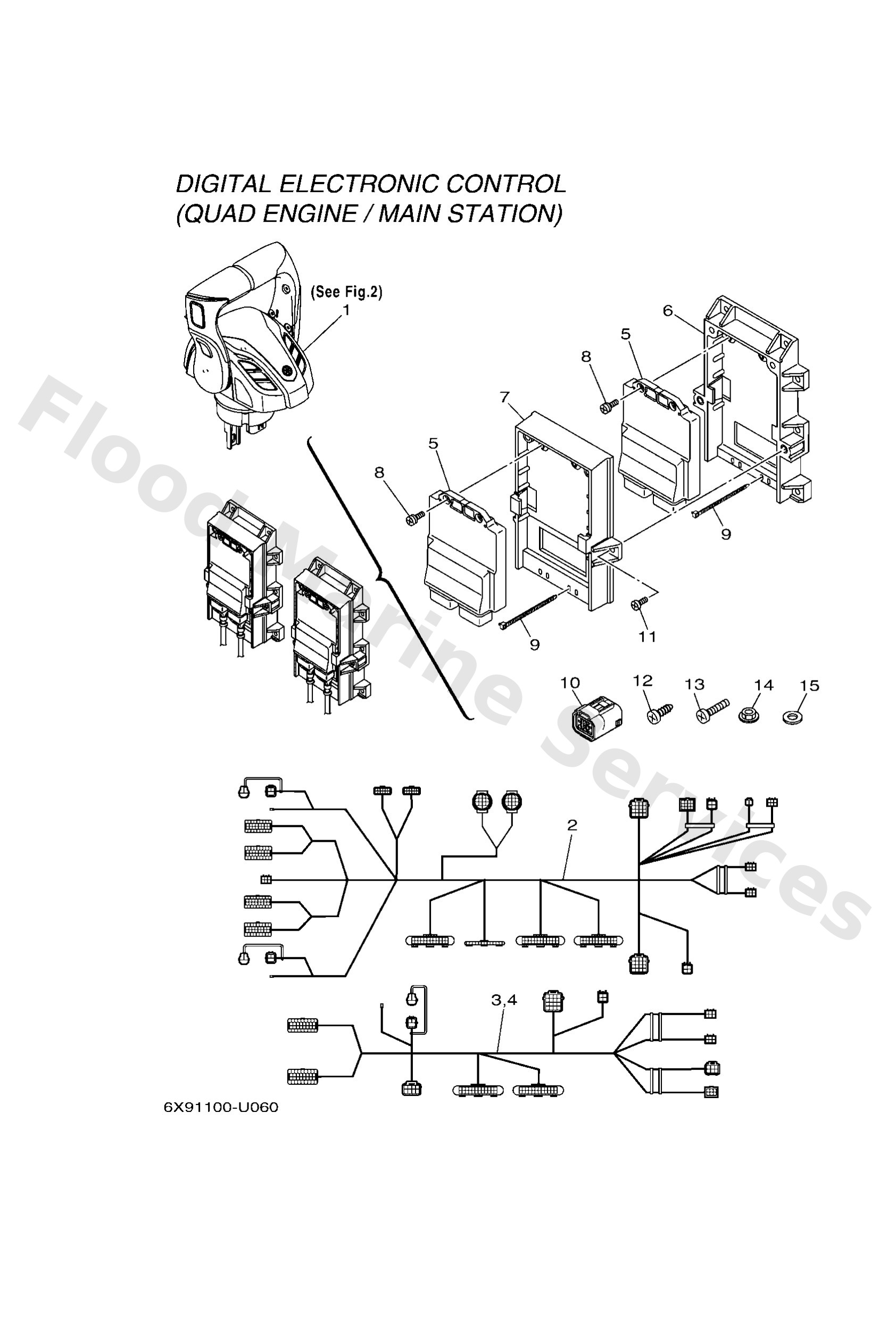

Diagram: DEC 6 (QUAD/MAIN ST)
Parts List
Reference
Description
Price
1
6X948A0200
NOT FOR SALE
Remote control box
Loading…
↗
2
6X98258040
Wire Harness assembly 2
Loading…
↗
3
6X982580C0
Wire Harness assembly 2
Loading…
↗
4
6X982580D0
Wire Harness assembly 2
Loading…
↗
5
6X68559040
Control unit assembly
Loading…
↗
6
6X94821100
Housing,1
Loading…
↗
7
6X94821A00
Hsg. , 2
Loading…
↗
8
9760705212
Screw,w/washer
Loading…
↗
9
9046513M11
Clamp (6e5)
Loading…
↗
10
6Y88537101
End of line resister
Loading…
↗
11
9850706016
Screw, pan head(3tj)
Loading…
↗
12
9016706M00
Screw, tapping (6h4)
Loading…
↗
13
9788006035
Screw, pan head(6h4)
Loading…
↗
14
9578006300
Nut, nylon (6g1)
Loading…
↗
15
9020106M30
Washer, plate (6a1)
Loading…
↗
