Rigging - Remote Control (2025)
DEC 8 (FLUSH MOUNT/MAIN ST)

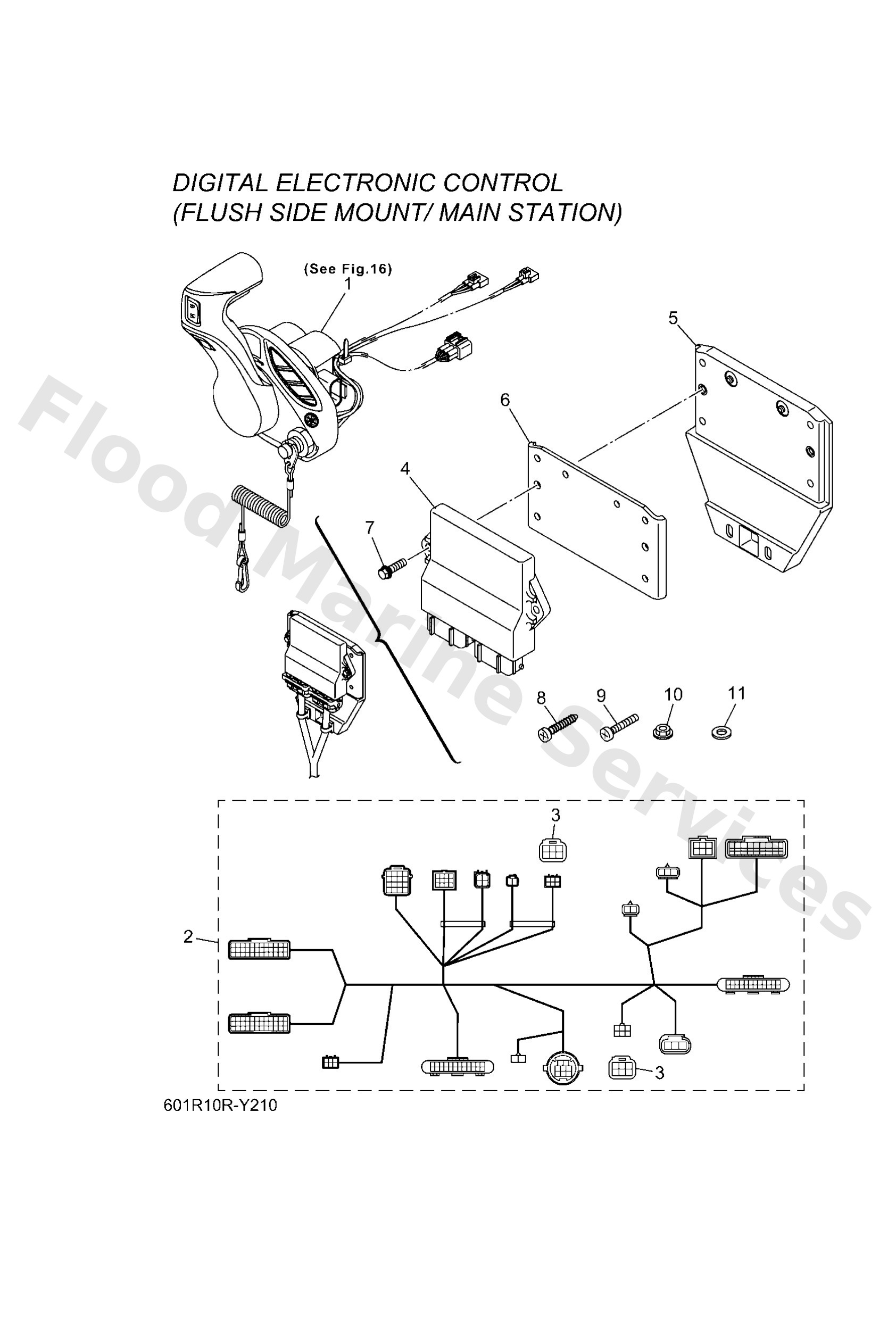

Diagram: DEC 8 (FLUSH MOUNT/MAIN ST)
Parts List
Reference
Description
Price
1
6X948A0002
ASK TO MARINE DIV
Remote Control Box assembly 1
Loading…
↗
2
6X982580H1
Wire harness assembly 2
Loading…
↗
3
6Y88537101
End of line resister
Loading…
↗
4
6X68559052
Control unit assembly
Loading…
↗
5
6X94821110
Housing,1
Loading…
↗
6
6X94821B00
Housing,3
Loading…
↗
7
9010506106
Bolt, flange
Loading…
↗
8
6X94812800
Screw 2
Loading…
↗
9
9015706M13
Screw, pan head(6h4)
Loading…
↗
10
9578006300
Nut, nylon (6g1)
Loading…
↗
11
90201065F1
Washer, plate(j41)
Loading…
↗
