Yamaha Outboard Parts - DES - Rigging - Meter (2025) | Flood Marine

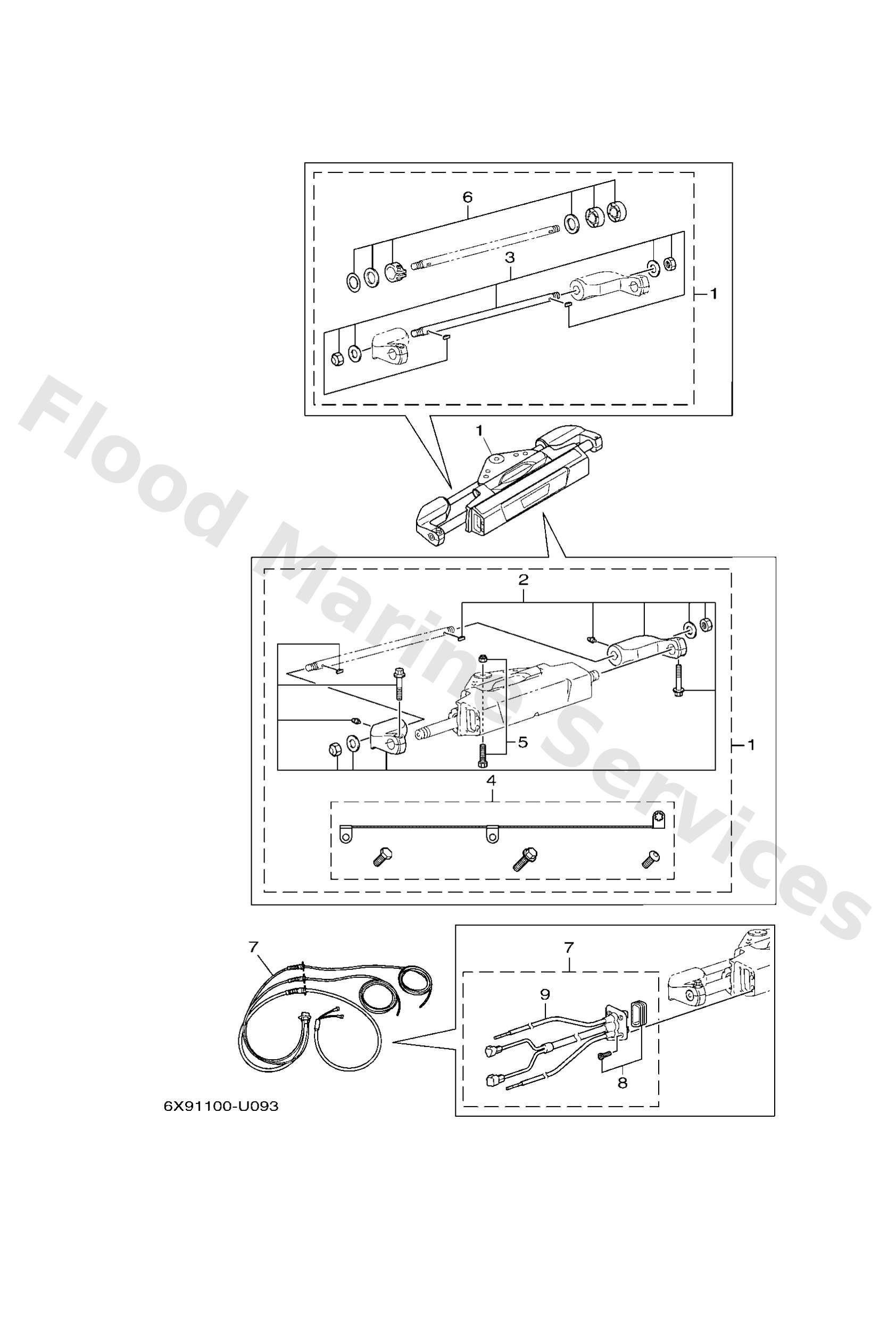

Diagram: DES

Diagram

Parts List

Reference
Description
Price


1
6X94240111
Bolt-on des kit
Loading…

↗
2
6X94240200
Repair kit, 1
Loading…

↗
3
6X94240300
Repair kit, 2
Loading…

↗
4
6X94240400
Repair kit, 3
Loading…

↗
5
6X94240500
Repair kit, 4
Loading…

↗
6
6X94240600
Repair kit, 5
Loading…

↗
7
6X9438A000 UR 2.4M-8FT
Steering actuator harness 2.4m
Loading…

↗
7
6X9438A010 UR 4.5M-15FT
Steering actuator harness 4.5m
Loading…

↗
7
6X9438A020 UR 2.4M-8FT
Steer act harness 2.4m u-shape
Loading…

↗
7
6X9438A030 UR 4.5M-15FT
Steer act harness 4.5m u-shape
Loading…

↗
7
6X9438A040 UR 2.4M-8FT NO BULKHEAD
Str act harn 2.4m no blkhd fit
Loading…

↗
8
6X94240700
Repair kit, 6
Loading…

↗
9
6X94240800 EXCEPT FOR 6X9-438A0-40
-
Loading…

↗
