RIGGING - METER (2011)
DIGITAL NETWORK GAUGE 2

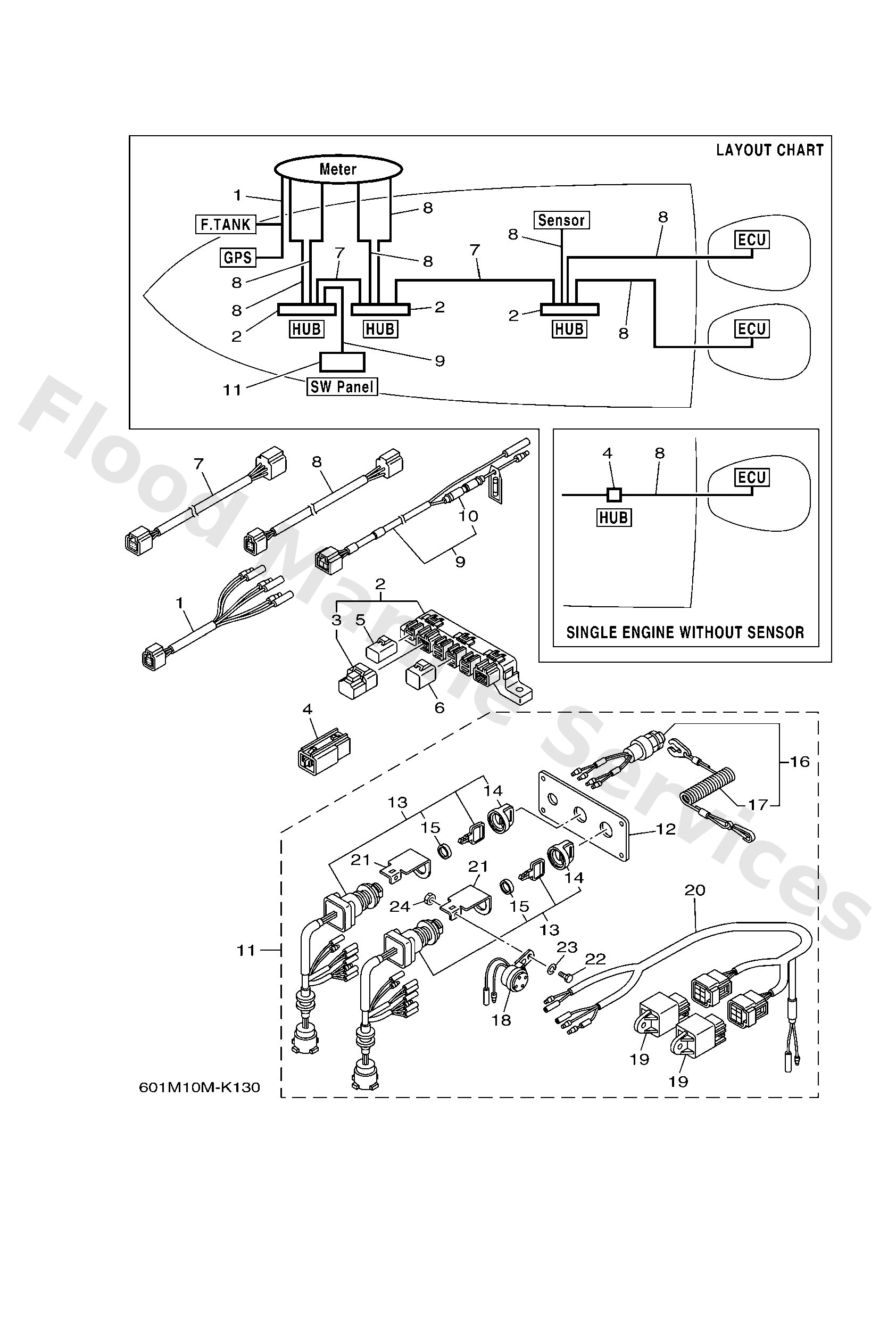

Diagram: DIGITAL NETWORK GAUGE 2
Parts List
Reference
Description
Price
1
6Y88356N01
Lead, fuel tank & gps sender
Loading…
↗
2
6Y88192001
UN
Multi-hub
Loading…
↗
3
6Y88537101
End of line resister
Loading…
↗
4
6Y88192011
Single-hub
Loading…
↗
5
6Y88258201
UN
Red cap 1 (2pin)
Loading…
↗
6
6Y88258211
UN
White cap 1 (4pin)
Loading…
↗
7
6Y88255301
UR
Main bus wire 0.3m-1ft
Loading…
↗
7
6Y88255311
UR
Main bus wire 4.6m (15ft)
Loading…
↗
7
6Y88255321
UR
Main bus wire 6.1m (20ft)
Loading…
↗
7
6Y88255331
UR
Main bus wire 7.6m (25ft)
Loading…
↗
7
6Y88255341
UR
Main bus wire 9.1m (30ft)
Loading…
↗
7
6Y88255350
UR
Main bus wire 3.0m-10ft
Loading…
↗
8
6Y88252151
UR
Pigtail bus wire 3.6m-12ft
Loading…
↗
8
6Y88252141
UR
9ft pigtail bus
Loading…
↗
8
6Y88252131
UR
Pigtail bus wire 1.8m-6ft
Loading…
↗
8
6Y88252111
UR
Pigtail bus wire 0.6m-2ft
Loading…
↗
8
6Y88252101
UR
1ft pigtail bus
Loading…
↗
8
6Y88252121
UR
Pigtail bus wire 0.9m-3ft
Loading…
↗
9
6Y88355301
8ft power wire
Loading…
↗
10
6G18215100
Fuse (10a)
Loading…
↗
11
6Y88257002
Panel switch assembly
Loading…
↗
12
6Y88257101
Plate, panel switch
Loading…
↗
13
6Y88251002
Main switch assembly
Loading…
↗
14
6768257700
Cap, key
Loading…
↗
15
7038253200
Cap
Loading…
↗
16
6K18257500
Engine stop switch assembly
Loading…
↗
17
6828255600
Lanyard, stop switch
Loading…
↗
18
6R58338300
Buzzer
Loading…
↗
19
68V8195000
Relay assembly
Loading…
↗
20
6Y88250700
Lead, ignition switch relay
Loading…
↗
21
64D8258100
Stay, cord clamp
Loading…
↗
22
9730305012
Bolt, hexagon
Loading…
↗
23
9290305100
Ybs67-5 washer, spring
Loading…
↗
24
9530305700
Nut (656)
Loading…
↗
