HARMO (2023)
DRIVE UNIT

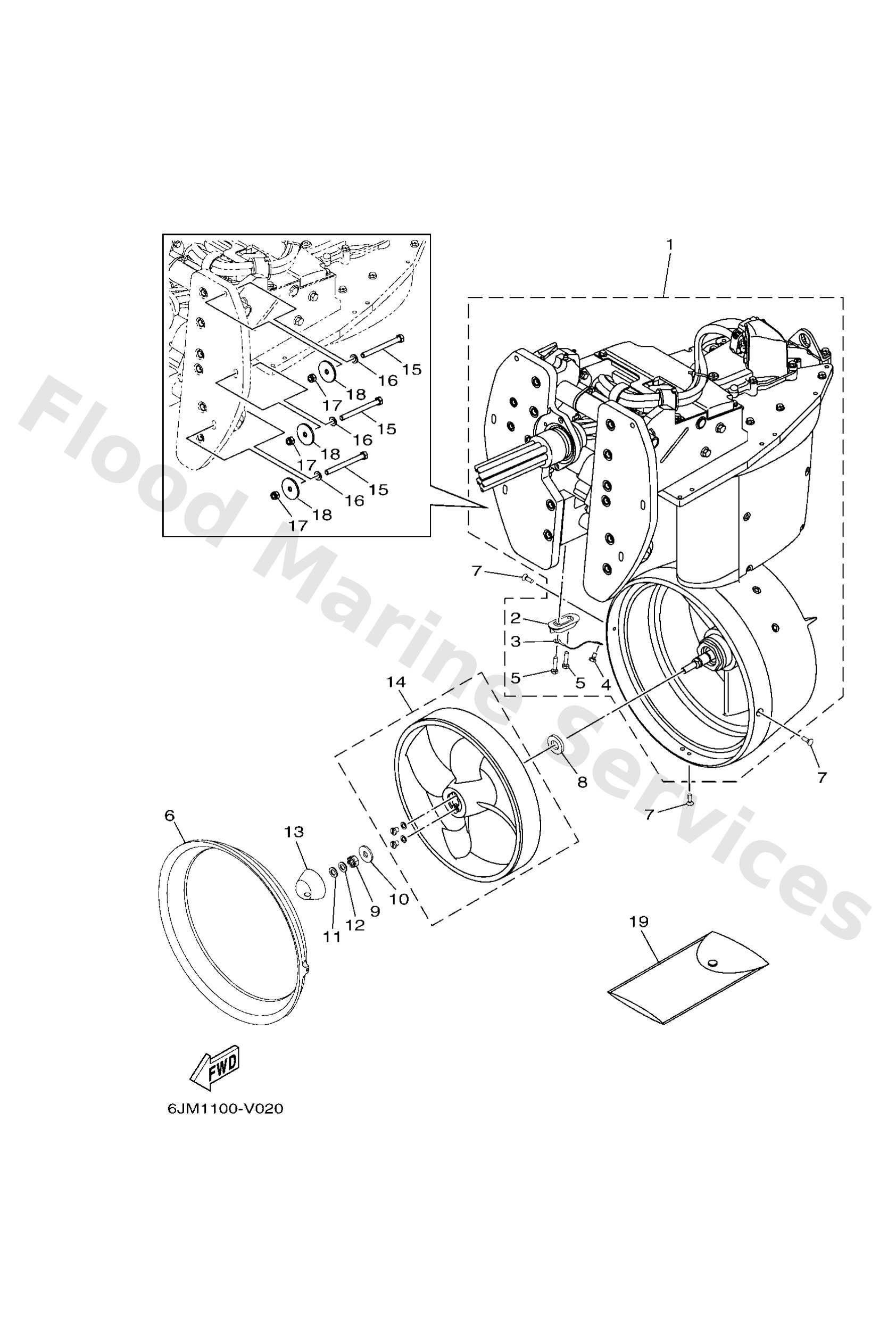

Diagram: DRIVE UNIT
Parts List
Reference
Description
Price
1
6JMW450A00P0
Drive unit
Loading…
↗
2
65W4525100
Anode
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
5
9010106020
Bolt
Loading…
↗
6
6JM1269200P0
Duct, 2
Loading…
↗
7
9015205M02
Screw, countersunk
Loading…
↗
8
9020117M00
Washer, plate(6h1)
Loading…
↗
9
9017110M01
Nut castle (683)
Loading…
↗
10
9020110M01
Washer, plate(6m7)
Loading…
↗
11
9299510600
Washer, plate
Loading…
↗
12
9299010100
Ybs67-10 washer, spring
Loading…
↗
13
6JM4598500P0
Cap, propeller
Loading…
↗
14
6JMW511A00P0
Impeller 1
Loading…
↗
15
9010108M88
Bolt (6g8)
Loading…
↗
16
9299008600
Washer, plain (663)
Loading…
↗
17
9018508057
Nut, nylon (6j8)
Loading…
↗
18
9020108MA4
Washer, plate (6g8)
Loading…
↗
19
6JMW281000
Tool kit
Loading…
↗
