3AMH (2006)
ELECTRICAL

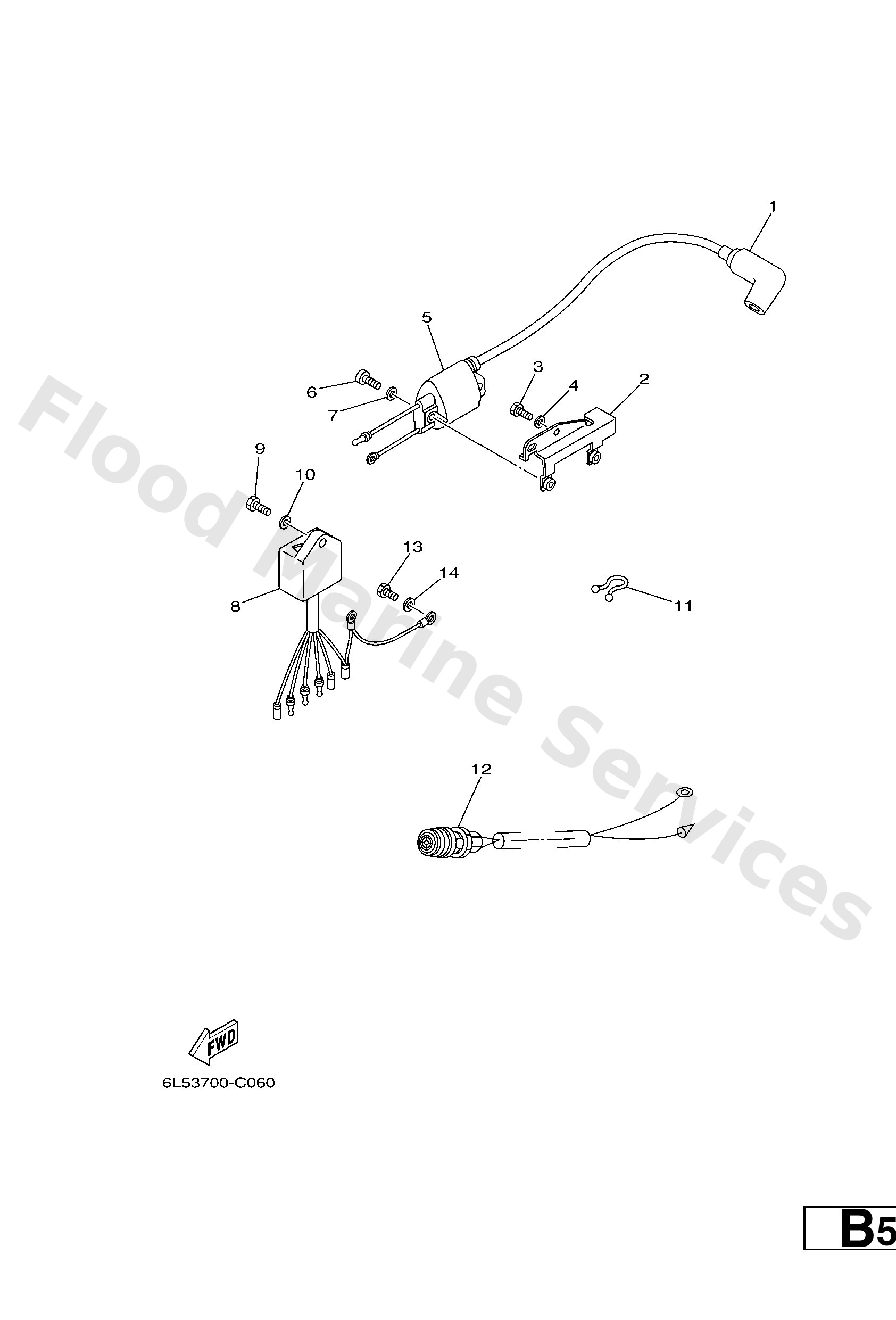

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6G18237021
Plug cap assembly
Loading…
↗
2
6L58231600
Bracket, ignition coil
Loading…
↗
3
9709506016
Bolt, hexagon deep recess
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6L585570N0
Ignition coil assembly
Loading…
↗
6
9788006016
Screw pan head
Loading…
↗
7
9299006600
Washer, plain (646)
Loading…
↗
8
6L585540M0
C.d.i. unit assembly
Loading…
↗
11
9046518147
Clamp
Loading…
↗
12
6L58255000
Stop switch assembly
Loading…
↗
13
9709006012
Bolt(gh1)
Loading…
↗
