40XMH (2019)
ELECTRICAL

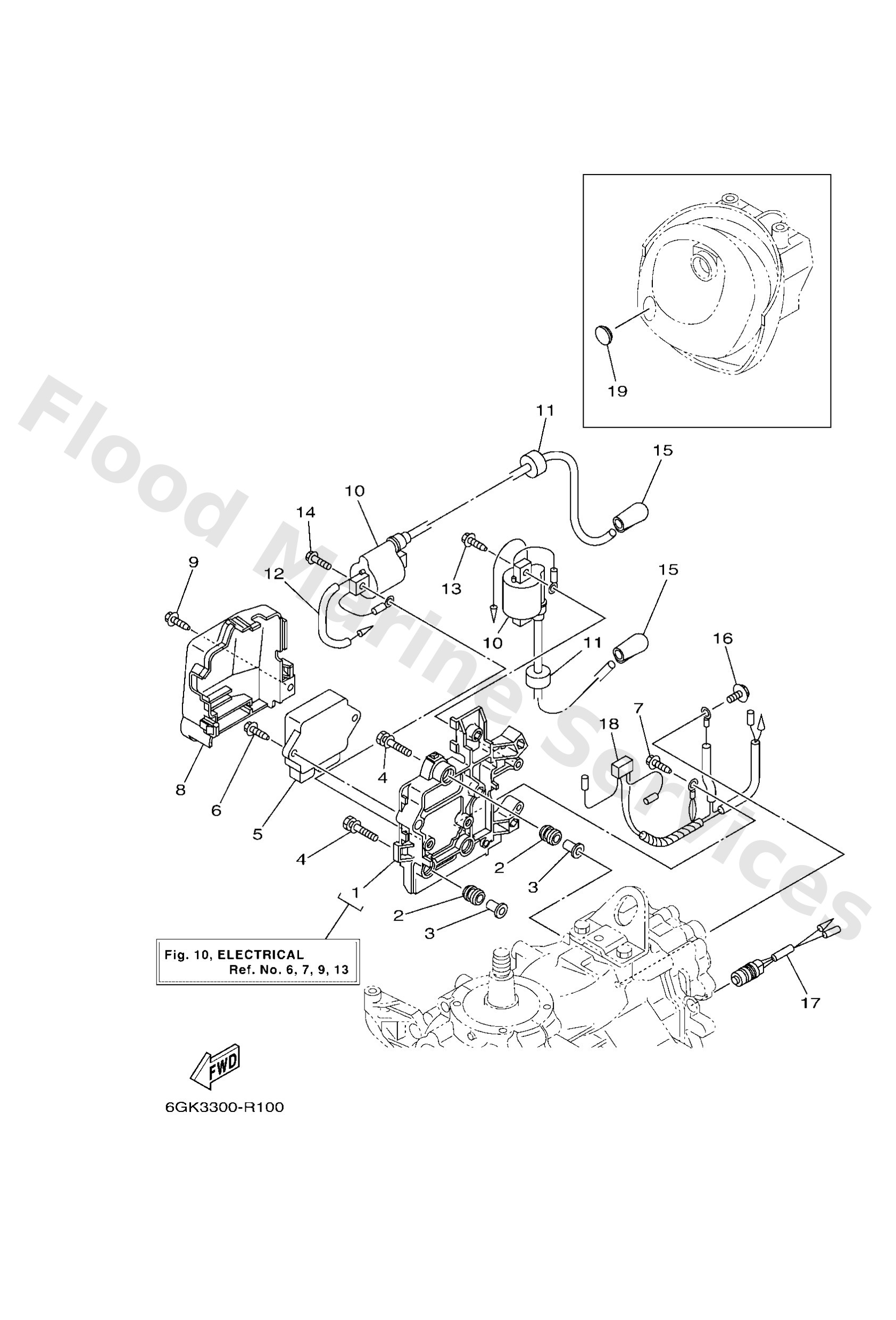

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
66T8554B0194
Bracket
Loading…
↗
2
6A08231700
Damper, ignition coil
Loading…
↗
3
9038706119
Collar
Loading…
↗
4
9011906M65
Bolt, with washer
Loading…
↗
5
66T8554002
C.d.i. unit assembly
Loading…
↗
6
9010906M81
Bolt
Loading…
↗
7
9010906M80
Bolt
Loading…
↗
8
66T8191601
Cover, terminal
Loading…
↗
10
66T8557000
Ignition coil assembly
Loading…
↗
11
9048025161
Grommet(656)
Loading…
↗
12
9044603MA3
Hose
Loading…
↗
14
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
15
6E38237021
Plug cap assembly
Loading…
↗
16
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
17
6888256010
Thermo switch assembly
Loading…
↗
18
66T8251900
Wire, earth lead
Loading…
↗
19
6G14272500
Grommet
Loading…
↗
