50GETO (2002)
ELECTRICAL

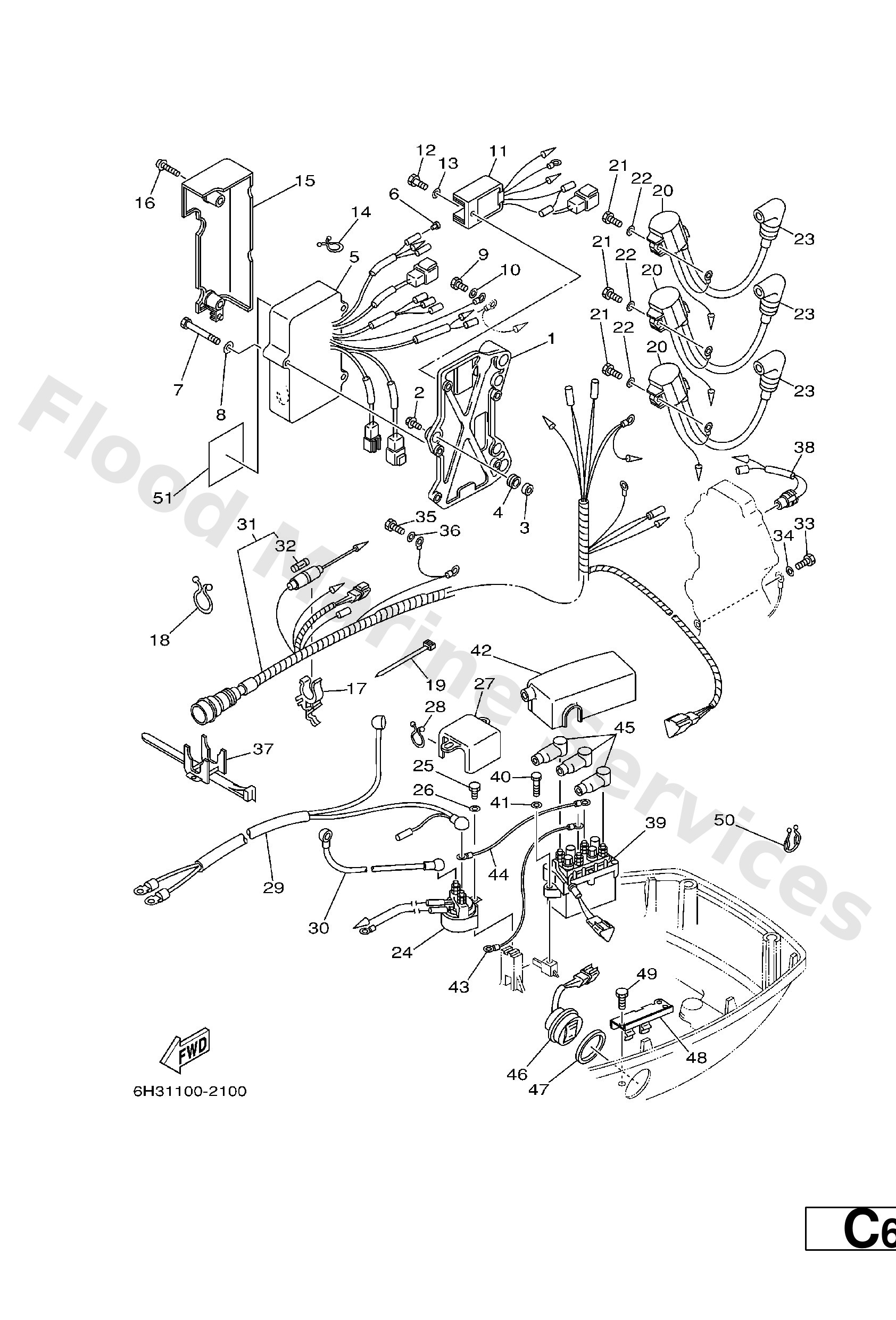

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6H3--85542--11--94
Bracket
Loading…
↗
2
90105--06M14
Bolt (6e0)
Loading…
↗
3
90387--06M43
Coller (6e9)
Loading…
↗
4
90480--13M54
Grommet(6h2)
Loading…
↗
5
6H28554011
C.d.i. unit assembly
Loading…
↗
6
703--82119--00
Cover, lead wire
Loading…
↗
7
97095--06045
Bolt, hexagon
Loading…
↗
8
92995--06600
Washer, plain (646)
Loading…
↗
9
97013--06012
Bolt(gh1)
Loading…
↗
10
92903--06600
Washer, plain (646)
Loading…
↗
11
6H2--81960--10
Rectifier & regulator assembly
Loading…
↗
12
97095--06016
Bolt, hexagon deep recess
Loading…
↗
14
90464--05M16
Clamp(6j8)
Loading…
↗
15
6H3--81916--10
Cover, terminal
Loading…
↗
16
90159--06M01
Screw, with washer (6f5)
Loading…
↗
17
6G5--82152--00
Holder, fuse
Loading…
↗
18
90464--23M22
Clamp
Loading…
↗
19
90465--13M11
Clamp (6e5)
Loading…
↗
20
697--85570--00
Ignition coil assembly
Loading…
↗
21
97013--06020
Bolt(62y)
Loading…
↗
23
6G1--82370--21
Plug cap assembly
Loading…
↗
24
688--81950--10
Relay assembly
Loading…
↗
25
97013--06016
Bolt, hexagon deep recess
Loading…
↗
27
6H3--82164--00
Case 2
Loading…
↗
28
90464--15M11
Clamp (3y2)
Loading…
↗
29
6H3--82105--01
Battery cable
Loading…
↗
30
6H3--82117--00
Wire, lead
Loading…
↗
31
6H28259013
Wire harness assembly (10p)
Loading…
↗
32
663--82151--00
Fuse
Loading…
↗
37
688--82594--00
Clamp
Loading…
↗
38
688--82560--10
Thermo switch assembly
Loading…
↗
39
61A--81950--00
Relay assembly
Loading…
↗
40
97095--06025
Bolt
Loading…
↗
42
6H3--82154--11
Case
Loading…
↗
43
6H2--81949--11
Wire, lead
Loading…
↗
44
6H2--81949--01
Wire, lead
Loading…
↗
45
682--82119--01
Cover, lead wire
Loading…
↗
46
6H1--82563--10
Trim & tilt switch assembly
Loading…
↗
47
6E5--82587--00
Gasket
Loading…
↗
48
6E5--83614--01
Bracket
Loading…
↗
50
90464--18M14
Clamp(6h1)
Loading…
↗
51
6R5--85711--60
Mark, caution
Loading…
↗
